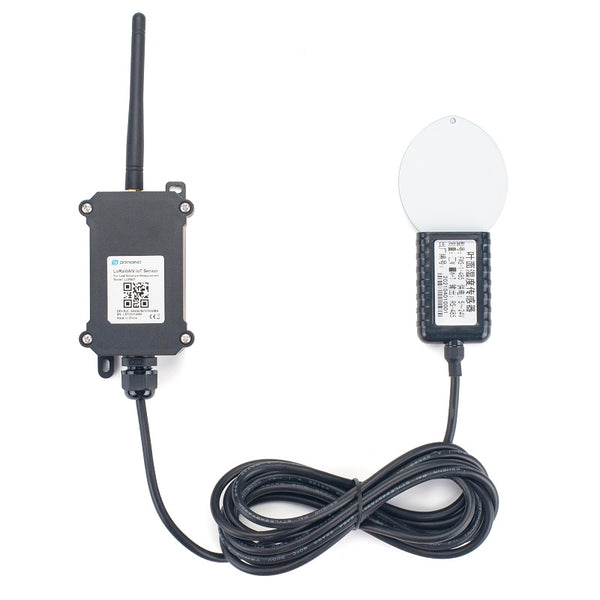

The Dragino LLMS01 is a LoRaWAN Leaf Moisture Sensor for IoT of Agriculture. It is designed to measure the leaf moisture and temperature, so to send to the platform to analyze the leaf status such as : watering, moisturizing, dew, frozen. The probe is IP67 waterproof.

LLMS01 detects leaf’s moisture and temperature use FDR method, it senses the dielectric constant cause by liquid over the leaf surface, and cover the value to leaf moisture. The probe is design in a leaf shape to best simulate the real leaf characterizes. The probe has as density as 15 leaf vein lines per centimeter which make it can senses small drop and more accuracy.

The LoRa wireless technology used in LLMS01 allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
LLMS01 is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each LLMS01 is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here.

Feature:

LoRaWAN 1.0.3 Class A
Monitor Leaf temperature
Monitor Leaf moisture
Ultra-low power consumption
AT Commands to change parameters
Monitor Battery Level
Bands: CN470/EU433/KR920/US915/
EU868/AS923/AU915/IN865
AT Commands to change parameters
Uplink on periodically
Downlink to change configure
IP66 Waterproof Enclosure
IP67 rate for the Sensor Probe
8500mAh Battery for long term use

Probe Specification:

Leaf Moisture: percentage of water drop over total leaf surface

Range 0-100% Resolution: 0.1%
Accuracy: ±3%（0-50%）；±6%（>50%）
IP67 Protection Length: 3.5 meters

Leaf Temperature:

Range -50℃～80℃ Resolution: 0.1℃
Accuracy: <±0.5℃(-10℃～70℃)，<±1.0℃ (others)
IP67 Protection
Length: 3.5 meters

Applications:

Smart Agriculture

LoRaWAN frequency and Countries/Regions

Frequency	Status	Countries/Regions
EU868	OK	Europe and other
AU915, AS923	OK	Australia
		New Zealand
		Brunei
		Cambodia
		Hongkong
		Indonesia
		Japan
		Laos
		Singapore
		Taiwan
		Thailand
		Vietnam
CN470	OK	China
US915	OK	USA
KR920	OK	Korea

Datasheet: LLMS01.pdf

Operation manual: LLMS01 User manual.pdf

Configure manual: LLMS01 AT command.pdf

Decorder: LLMS01 decorder - TTN.txt
