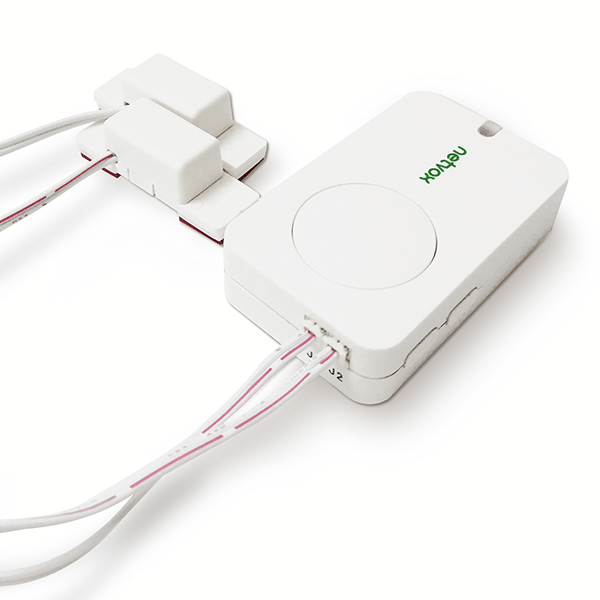

NETVOX Wireless Water Sensor R311W is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R311W sensor detects the leak, it will send an alarm message to the gateway. When the sensor detects no leaks, it will send a message that shows no leak to the gateway.

Principle of Operation

NETVOX Wireless Water Sensor is available to detect water leak at data center, engine room, boat blige...etc. The radio transmission is based on the new disruptive LoRa long range technology. R311W will transmit information and data to the server from application fields based on the desired behavior. The low battery consumption device is long lasting which ensures optimum usage.

Thanks to small sizes, they can be installed everywhere. They are wireless so they take up minimal floor space.The transmission is direct to a central center that can be programmed to trigger an alarm system.Thanks to innovation, these wireless sensors are more reliable and precise and they can detect several applications.

Example Applications

Data center and server room water monitoring
Document retention center monitoring
Basement water monitoring
Plumbing leak detection
Boat bilge monitoring
Storage monitoring
And many ..

Features of NETVOX Sensors

Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

* Actual range may vary depending on environment.

* Battery life is determined by sensor reporting frequency and other variables

Technical Specifications

Input Power	2pcs 3.0V CR2450 button battery
Working Voltage	DC 2.4V～3V
Standby Current	12uA/3.0V
Tx Current	120mA/3.0V
Rx Current	11mA @3.0V
Voltage Threshold	2.4V
Battery Voltage measurement accuracy	±0.1V

Frequency

Tx Power	19dBm±1dBm
Rx Sensitivity	-136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Build-in antenna
Communication Range	Build-in antenna
Data Transfer Rate	0.3kbps～50kbps
Spread Technique	LoRa/FSK
Available Frequency	EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment

Physical

Main Body Dimension	57mm x 35mm x 15mm
Sensor Dimension	43mm x 13mm x 12mm
Weight	48.9g
Operating Temperature	-20℃ ～ 55℃
Environment Humidity Range	<90% RH (No condensation)
Storage Temperature	-40℃ ～ 85℃
