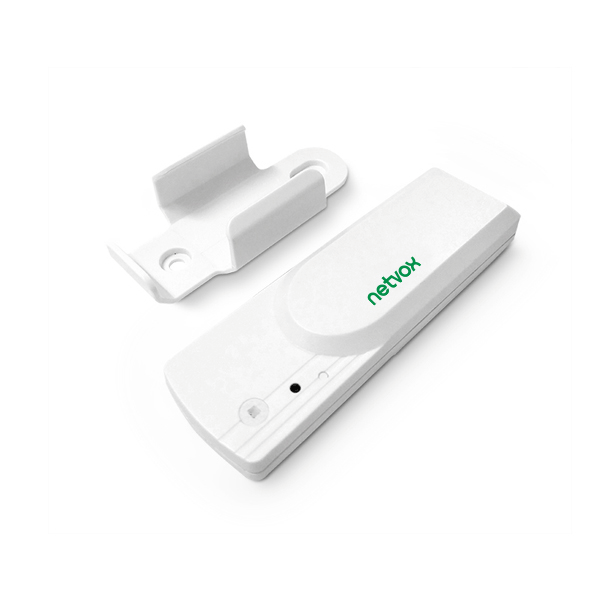

NETVOX Wireless Sensor R711 is capable to measure temperature and humidity of the indoor air.

Principle of Operation

Netvox R711, mainly used to detect the temperature and humidity of the indoor air, which through the wireless network communication module to collect the data sent to other devices displayed.

Thanks to small sizes, they can be installed everywhere. They are wireless so they take up minimal floor space.The transmission is direct to a central center that can be programmed to trigger an alarm system.Thanks to innovation, these wireless sensors are more reliable and precise and they can detect several applications.

Example Applications

Warehouse Temperature and humidity monitoring
Summer/winter (vacation) property monitoring
HVAC system monitoring to detect failures or heating / cooling issues
Art gallery temperature monitoring
Heat remediation of bed bugs (extermination)
Server room temperature and humidity monitoring
Greenhouse temperature and humidity monitoring
Art gallery and museum environment monitoring

Features of NETVOX Sensors

• Wireless range of 10 km *

• LoRaWANTM Class A compatible

• Frequency Hopping Spread Spectrum (FHSS)

• Improved interference immunity

• Improved power management for longer battery life

• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)

• Battery Life* :

5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)

• Over-the-air updates (future)

• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)

• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

-

*Actual range may vary depending on environment.

*Battery life is determined by sensor reporting frequency and other variables

Technical Specifications

Input Power	2 x 1.5V AA batteries
Working Voltage	DC 2.4V～3V
Standby Current	12uA/3.0V
Tx Current	120mA/3.0V
Rx Current	11mA @3.0V
Battery Voltage measurement accuracy	±0.1V

Frequency

Tx Power	19dBm±1dBm
Rx Sensitivity	-136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Build-in antenna
Communication Range	Build-in antenna
Data Transfer Rate	0.3kbps～50kbps
Spread Technique	LoRa/FSK
Available Frequency	EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment

Physical

Dimension	L:112mmW:34mmH:17mm
Weight	43.8g
Operating Temperature	-20℃ ～ 55℃
Environment Humidity Range	<90% RH (No condensation)
Storage Temperature	-40℃ ～ 85℃
Temperature Measurement Range	-20°C － 55°C
Temperature Measurement Accuracy	-±0.5°C @25°C Max. +/-0.8°C@ -20°C~55°C
Humidity Measurement Range	10%RH － 90%RH
Humidity Measurement Accuracy	±4%RH @25°C

Datasheet:

R711.pdf

User manual:

R711_UG.pdf

Battery Calculator:

Netvox Battery Calculator

Netvox LoRa Command Resolver:

LoRa Command Resolver

R711 - Netvox LoRaWan Wireless Indoor Temperature Humidity Sensor
