Sku: Lansitec-BLE-Gateway-AS923
AUD$235.00
Availability:
Out Of Stock
Sku: Lansitec-BLE-Gateway-AS923
Elecom Electronics Supply

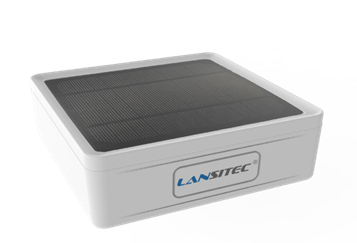

Lansitec Solar Bluetooth Gateway is designed based on LoRa and Bluetooth 5.0 technology. Receive nearby Bluetooth beacon messages, then transmit to LoRa gateways through LoRaWAN after restructure the data.
It is powered with robust solar film and a 5300mAh rechargeable battery.
APPLICATIONS
Vehicle tracking, Asset and personal management Garbage bin management, Temperature, humidity, accelerated speed, heartrate data transfer It supports Bluetooth sensors data transfer: temperature, position, accelerated speed, heart rate, blood pressure.
Feature:
- Indoor tracking precision: 3m
- Geo-fence
- Wide operating temperature range
- Maintenance free
- Adjustable Bluetooth uploading frequency, extremely long standby time
- iBeacon, Eddystone or any BLE sensor data communication and positioning
| Bluetooth Protocol: |
Bluetooth 5.0 |
|---|---|
|
LoRaWan Protocol |
LoRaWAN 1.0.2B |
|
LoRaWAN Band |
US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470 (order option) |
|
LoRa Maximum RF Power |
2dB |
|
LoRa Sensitivity: |
-139dBm @SF12, BW125kHz, 434MHz/470MHz -137dBm @SF12, BW125kHz, 868MHz/915MHz |
|
Access Quantity: |
18.55mm x H 65.1mm |
| Data Rate(bps): | 300~30K |
MECHANICS
| Dimension: | 160 x 160 x 55mm |
|---|---|
|
Operating Temperature: |
-40°C ~ +70°C |
| Weight | 150g |
| IP Rated |
IP66 |
| Battery |
5300mAh |
| Charging method |
Solar Panel |
| Battery Life: |
Adjustable Position Report Interval: 5s x n (1 to 65536) Heartbeat Report Interval: 30s x n (1 to 65536) Switch: Mechanical Customized data filter and data report: Support FOTA over Bluetooth: Support
Max. Beacons Supported: 105 **, maximum of 15 beacon messages at one single LoRa communication @SF9 ** Please reach out to us if more are needed. |
Certification and Accuracy
| Certification: | CE, FCC, RCM |
|---|---|
|
Positioning Precision |
3 meter |
Datasheet: Lansitec Solar BLE to LORANWAN gateway datasheet.pdf
