Easy Modbus data logger

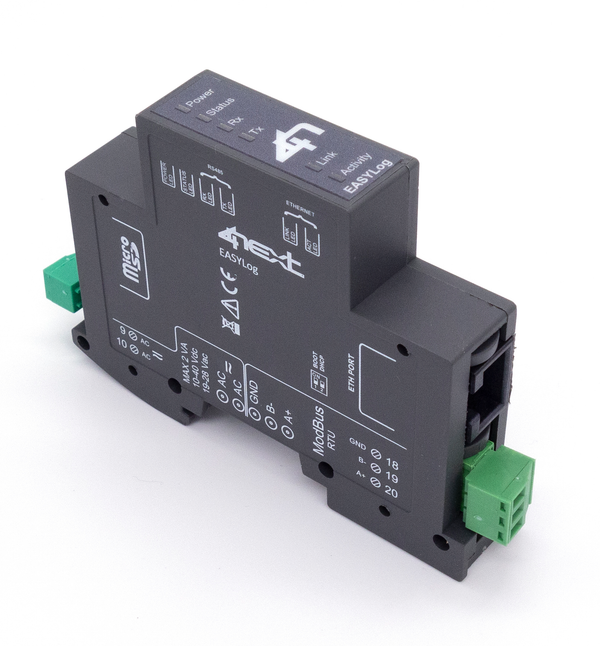

EASYLOGXL-A is a data logger that allows interfacing with all ModBus RTU and TCP devices in a simple way without needing any programming skills. Thanks to memorized devices profiles, the choice of registers and variables is immediate and consequently it saves installation time without running the risk of having compatibility problems.

Configuration is done through a WEB interface that allows quick access to all system parameters, ModBus registers and variables to be stored. Thanks to the integrated Wi-Fi interface, the configuration is easily possible even from a mobile phone or a Tablet.
Data are stored in a removable SD memory as CSV file that can be easily imported from any software including Excel, Databases etc...

It is possible to send data automatically by e-mail, FTP or JSON and MQTT protocols if connected to the internet or via the optional 4G modem.

Applications

EASYLOGXL-A is dedicated to real-time logging and data analysis. Using 4G modem or Ethernet connection, EasyLogsends data to users (Http and FTP) or to remote servers for management via WEB portal. The most common applications are: metering (Energy, Water, Gas), water treatment, renewable energy, industrial and process control, measurements in thermal power plants and agri-food monitoring

General features

• 10-100Mb/s Ethernet port
• DIN rail guide attachment (1 module)
• Frontal panel LED signalling
• Size 90x70x65 mm
• Operating temperature -20°C +60°C
• CE Certification (EN 61000-6-2, EN 61000-6-4 Standards)

Electrical features

• Power supply 10-40 v DC / 19-28 v AC
• Power consumption <: 1,5W
• N. 1 RS485 serial interface (1200÷115200 bps)
• 802.11b/g/n integrated module

Product Brief: Brochure_EasyLog_Vs-102-EN.pdf

Datasheet: EasyLog_DataSheet_EN.pdf

User Manual: Manual_EasyLog_Vs4_EN.pdf

Quick Setup: Quick-start_Vs2.1_EN-1.pdf

Software Setup: EasyLog setup guide-ELECOM.pdf
