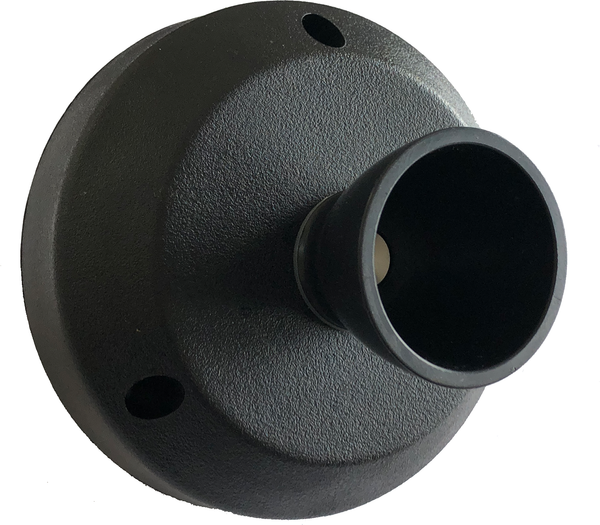

The DC410 smart manhole Sensor is specially designed for the detection of well
covers such as electrical and sewage system. When the well cover shift, open, or
other abnormal situation appears, the device can timely alarm output to the use to
indicate the current situation or status. Furthermore it detects the liquid /solid level
in the well and upload to the cloud server while alarm level triggered.

Through the built-in LoRaWAN module, the detector can pass status information to
the LoRaWAN gateway, network server, then the application server. Users can remotely monitor the manhole status, whether moved after installation or not. This
equipment can be widely used in smart city projects.

The IP67 waterproof level can meet stringent requirements for use and make it for use long life, it is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).

Based on low-power algorithm, internal battery can work for more than 3 years.

Feature:

Internal battery can work for more than 3 years
Low-power and wireless technology LoRaWAN
IP67 waterproof protection Level
Sensitivity can be adjusted via command
Water level detection function
Movement detection function

Applications:

Manhole movement detection.
Sewerage/water level measurement.

Specifications:

Overview	Dimension	11511580mm
	Net Weight	150g
	Color	Black
	Shell Material	ABS
Detector	Principle	Ultrasonic @ 112kHz
	Detection Range	8 meters (vertical)
	Accuracy of height	3mm
	Blind area	0-25cm
	Accuracy of temperature	2℃
	Accuracy of angel	2° (optional)
	MCU	STM32, 32bit ARM® core controller
	LoRa Module	Semtech® 1276
Controller	Sensitivity	"-137dbm@292bps (RX), 5~20dbm(Tx)
Radio	Frequency	LoRaWAN® CN470/EU868/US915/AS923Mhz,or
	Working Mode	Class A
	Activation	ABP/OTAA activation;

	Communication Distance	3km in view sight;
Power	Batter Life	If you upload data 4 times a day, the battery life is more than 3 years
	Internal Battery	ER26500 Lithium Battery 8000mAh @ 3.6V,

	Current	<120mA@3.6V(uploading), <40uA@3.6V(sleep),
Environment	Operating Temperature	-20 ~ +70℃
	Storage Temperature	-40 ~ +85℃
	Protection Level	IP67

LoRaWAN frequency and Countries/Regions

Frequency	Status	Countries/Regions
EU868	OK	Europe and other
AU915, AS923	OK	Australia
		New Zealand
		Brunei
		Cambodia
		Hongkong
		Indonesia
		Japan
		Laos
		Singapore
		Taiwan
		Thailand
		Vietnam
CN470	OK	China
US915	OK	USA
KR920	OK	Korea

Product Brief: DC410_PB.pdf

Datasheet: DC410_DS.pdf

Operation manual: DC410 User manual.pdf

Configure manual: DC410 config manual.pdf

Protocol manual: DC410 Protocol manual.pdf

Dingtek Configure tools: Dingtek config tools.zip

UART assist program: UARTASSIST.zip

DC410 - Dingtek Smart Ultrasonic Manhole sensor for water level management -8M version
