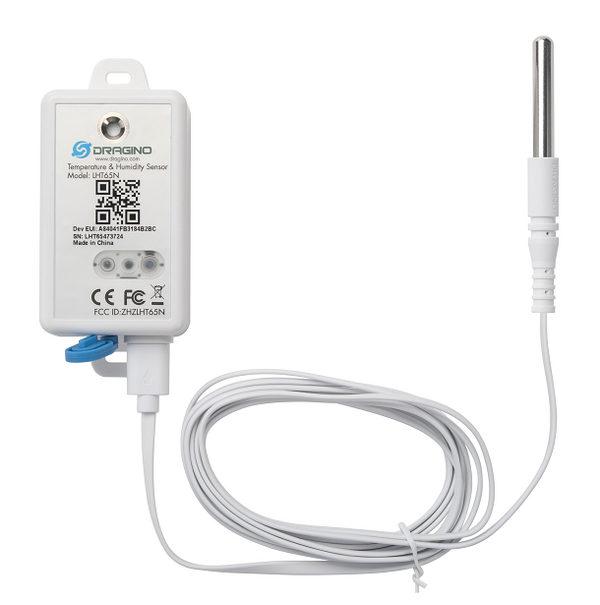

The Dragino LHT65N Temperature & Humidity sensor is a Long Range LoRaWAN Sensor. It includes a built-in Temperature & Humidity sensor and has an external sensor connector to connect to an external Temperature Sensor.

The LHT65N allows users to send data and reach extremely long ranges. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, building automation, and so on.

LHT65N has a built-in 2400mAh non-chargeable battery which can be used for up to 10 years*.

LHT65N is full compatible with LoRaWAN v1.0.3 Class A protocol, it can work with a standard LoRaWAN gateway.

LHT65N supports Datalog feature. It will record the data when there is no network coverage and users can retrieve the sensor value later to ensure no miss for every sensor reading.

*The actual battery life depends on how often to send data, please see battery analyzer chapter.

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here. Customer could check with us if they need AU915 FW, we could reprogram it for customer

Features:

LoRaWAN Class A protocol
Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
AT Commands to change parameters
Remote configure parameters via LoRaWAN Downlink
Firmware upgradable via program port
Built-in 2400mAh battery used for up to 10 year*
Built-in Temperature & Humidity sensor
Optional External Sensors
Tri-color LED to indicate status
Datalog feature

Applications:

Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems,etc.

Specifications:

Environment

Operating Temperature

-40 ~ 85°C

Storage Temperature

-40 ~ 85°C

Protection Level

IP66

Sensor accuracy

Built in Temperature / Humidity Sensor	Temperature range	-40 ~ 80 °C
	Accuracy	Resolution: 0.01°C Accuracy Tolerance : Typ ±0.3 °C Long Term Drift: < 0.02 °C/yr
	Humidity range	0 ~ 96 %RH
	Accuracy	Resolution: 0.04 %RH Accuracy Tolerance : Typ ±3 %RH

External Temperature Sensor

Temperature range

-55 °C ~ 125 °C

Accuracy

Resolution: 0.0625 °C

-10°C to +85°C : ±0.5°C

-55°C to +125°C: ±2°C

Cable length

2Meter

LoRaWAN frequency and Countries/Regions

Frequency	Status	Countries/Regions
EU868	OK	Europe and other
AU915, AS923	OK	Australia
		New Zealand
		Brunei
		Cambodia
		Hongkong
		Indonesia
		Japan
		Laos
		Singapore
		Taiwan
		Thailand
		Vietnam
CN470	OK	China
US915	OK	USA
KR920	OK	Korea

Datasheet: LHT65N datasheet.pdf

Operation manual: LHT65N User manual.pdf

Configure manual: LHT65N AT commands.pdf

Other documents: LHT65N Power Analyze.xlsx

Decorder: LHT65N decorder - TTN.txt

LHT65N-E3 - LoRaWan Temperature & Humidity Sensor with Inbuilt and External probe
