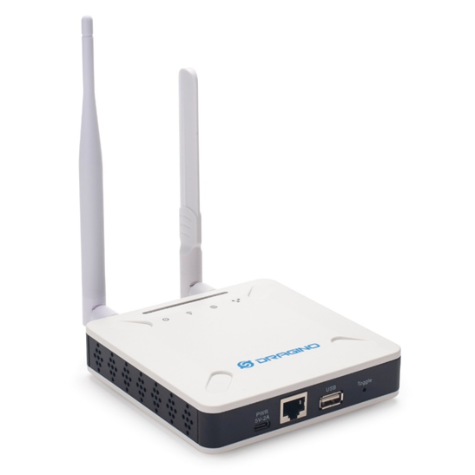

The LPS8N is an open source LoRaWAN Indoor Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular network. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.

The LPS8N uses Semtech packet forwarder & LoRaWAN Station connection and fully compatible with LoRaWAN protocol. It includes a SX1302 LoRaWAN concentrator, which provides 10 programmable parallel demodulation paths.

LPS8N has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network.

LPS8N can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.

Features:

Hardware System:

Linux Part:

400Mhz ar9331 processor
64MB RAM
16MB Flash

Interface:

10M/100M RJ45 Ports x 1
WiFi : 802.11 b/g/n
LoRaWAN Wireless
Power Input: 5V DC, 2A, Type C
USB 2.0 host connector x 1
Mini-PCI E connector x 1
SX1302 + 2 x SX1250
802.3af PoE (for LPS8NP version)

WiFi Spec:

IEEE 802.11 b/g/n
Frequency Band: 2.4 ~ 2.462GHz
Tx power:
- 11n tx power : mcs7/15: 11db mcs0 : 17db
- 11b tx power: 18db
- 11g 54M tx power: 12db
- 11g 6M tx power: 18db
Wifi Sensitivity
- 11g 54M : -71dbm
- 11n 20M : -67dbm

LoRa Spec:

Up to -140 dBm sensitivity
70 dB CW interferer rejection at 1 MHz offset
Able to operate with negative SNR, CCR up to 9dB
8 x 8 channels LoRa packet detectors,8 x SF5-SF12 LoRa demodulators,8 x SF5-SF10 LoRa demodulators,125/250/500 kHz LoRa demodulator and 1 x (G)FSK demodulator
Dual digital TX & RX radio front-end interfaces
10 programmable parallel demodulation paths
Dynamic data-rate (DDR) adaptation
True antenna diversity or simultaneous dual-band operation

Cellular 4G LTE (optional):

4G module link for DIY customer

Quectel: EC25AU miniPCIE module, CAT 4 AU
Quectel: EG25G miniPCIE module, CAT 4 Global
Quectel: EC21AU miniPCIE module, CAT 1 AU
Quectel: EG21G miniPCIE module, CAT 1 Global
Standard Size SIM Slot
1 x 4G Sticker Antenna.
Worldwide LTE,UMTS/HSPA+, and GSM/GPRS/EDGE coverage

Datasheet: LPS8N datasheet.pdf

Operation manual: LPS8N User manual.pdf
