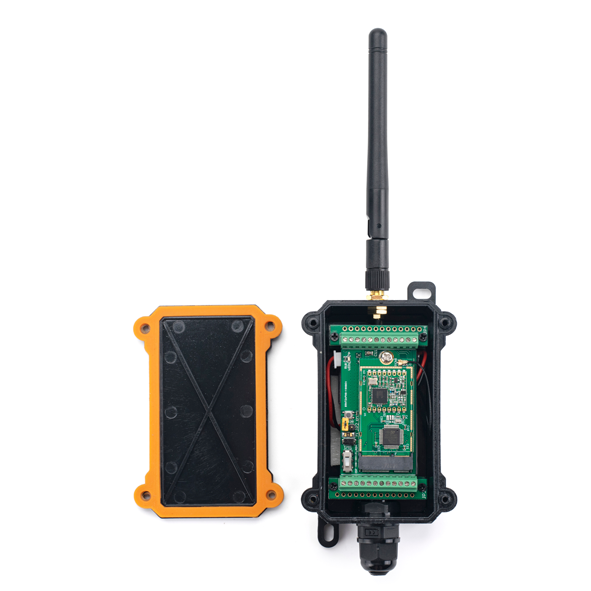

LSN50v2 is a Long Range LoRaWAN Sensor Node. It is designed for outdoor use and powered by Li/SOCl2 battery for long term use, power consumption and secure data transmission.It is designed to facilitate developers to rapidly deploy industrial level LoRaWAN and IoT solutions. LSN50 v2 helps users to turn the idea into a practical application and make the Internet of Things a reality. It is easy to program, create and connect your things everywhere.

LSN50v2 is based on SX1276/SX1278 allows the user to send data and reach extremely long ranges at low data-rates.It provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.It targets professional wireless sensor network applications such as irrigation systems, smart metering, smart cities, smartphone detection, building automation, and so on.

LSN50v2 uses STM32l0x chip from ST, STML0x is the ultra-low-power STM32L072xx
microcontrollers incorporate the connectivity power of the universal serial bus (USB 2.0 crystal-less) with the high-performance ARM® Cortex®-M0+ 32-bit RISC core operating at a 32 MHz frequency, a memory protection unit (MPU), high-speed embedded memories (192 Kbytes of Flash program memory, 6 Kbytes of data EEPROM and 20 Kbytes of RAM) plus an extensive range of enhanced I/Os and peripherals.

LSN50v2 is an open source product, it is based on the STM32Cube HAL drivers and lots of libraries can be found in ST site for rapid development.

Default FW in AS923, but it support US915, AU915 and all 900MHz Frequency by loading different FW, it could also support 868MHz if loading 868MHz FW, but there will be slight 0.5-1dB loss here.

Feature:

STM32L072CZT6 MCU
SX1276/78 LoRa Wireless Modem
Pre-load with ISP bootloader
I2C,LPUSART1,USB
18 x Digital I/Os
2 x 12bit ADC; 1 x 12bit DAC
MCU wake up by UART or Interrupt
LoRa™ Modem
Preamble detection
Baud rate configurable
LoRaWAN 1.0.4 Specification
Software base on STM32Cube HAL drivers
Open source hardware / software
Available Band:433/868/915/920 Mhz
IP68 Waterproof Enclosure
Ultra Low Power consumption
AT Commands to setup parameters
4000mAh or 8500mAh Battery for Long term use

Applications:

Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems,etc.

Specifications:

Environment

Operating Temperature

-40 ~ 85°C

Storage Temperature

-40 ~ 85°C

Protection Level

IP66

Interfaces supported

Interface	2x12bit ADC
	1x12bit DAC
	I2C
	LPUSART1
	USB
	18xDigital I/Os

LoRaWAN frequency and Countries/Regions

Frequency	Status	Countries/Regions
EU868	OK	Europe and other
AU915, AS923	OK	Australia
		New Zealand
		Brunei
		Cambodia
		Hongkong
		Indonesia
		Japan
		Laos
		Singapore
		Taiwan
		Thailand
		Vietnam
CN470	OK	China
US915	OK	USA
KR920	OK	Korea

Datasheet: LSN50v2 datasheet.pdf

Operation manual: LSN50v2 User manual.pdf

Configure manual: LSN50v2 AT commands.pdf

Other documents: LSN50v2 5 Power Analyze.xlsx

Decorder: LSN50v2 decorder - TTN.txt

LSN50v2 - Dragino LoRaWAN Sensor Node included 2x12bit ADC, 1x12bit DAC I2C,LPUSART1,USB 18xDigital I/Os
