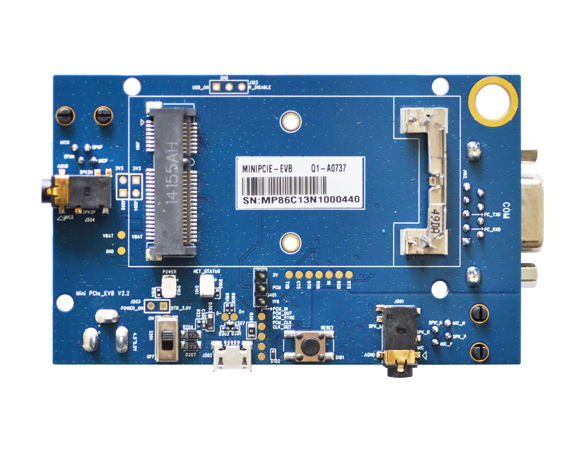

Quectel supplies Mini PCIe-EVB kit for designers to develop applications based on Quectel Mini PCIe module. This EVB can test all functionalities of Quectel Mini PCIe module.

Suitable for All Quectel miniPCIE Modules

Key Features

Power Supply	DC supply 4.5V~5.5V typically 5V, VBAT: 3.3V at J202
(U)SIM Interface	USIM/SIM card (6 pins) connector with push loading USIM/SIM card: 3V and 1.8V
Audio Interface	Used for earphone and handset
UART Interface	COM-serial interface for data communication (default 115200bps) Max. baud rate: 460800bps
USB Interface	USB 2.0
Signal Indication	2 LEDs are available for signal indication
Physical Characteristics	Size: 94mm × 58mm

EVB Kit Includes

● USB to UART converter cable X 1
● USB cable X 1
● RF cable X 3
● Main Antenna X 2
● GNSS Antenna (passive) X 1
● Earphone X 1
● USB 2.0 to RS232 driver and USB driver disk X 1
● Bolts and nuts for fixing EVB X 1

HW guide: miniPCIE-EVB-KIT HW guide.pdf

miniPCIE-EVB-KIT - Quectel Universial miniPCIE testing and and development board
