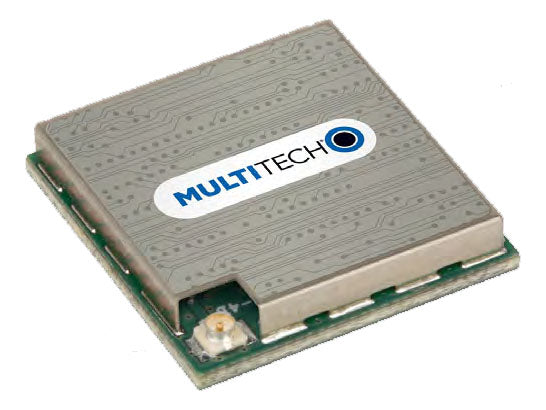

MultiConnect® xDot™ LoRa module AU915MHz frequency

Secure, Long Range RF Modules (MTXDOT Series)

We could provide AU915 FW, AS923 FW and KR920 for different region and customer applications.

The MultiConnect® xDot™ is a secure, CE/FCC certified, ARM® mbed™ programmable, low-power RF module, that provides long-range, low bit rate M2M data connectivity to sensors, industrial equipment and remote appliances. The MultiConnect xDot is LoRaWAN™ 1.0.1 compliant, providing bi-directional data communication up to 10 miles / 15 km line-of-sight and 1-3 miles / 2 km into buildings**, using sub-GHz ISM bands in North America and Europe. xDots bring intelligence, reduced complexity and a lower overall bill of material cost to the very edge of the network while supporting a variety of electronic interfaces to connect just about any “Thing” for years on battery power.

KEY BENEFITS

··Up to 10 miles / 16 km range

··Deep in-building penetration – 1 to 3 miles / 2 to 5 km

··Developer friendly to integrate and quickly deploy assets

··Runs for years on batteries

FEATURES

··FCC/CE end-certified for use in North America & Europe

··LoRa™ Alliance certified (pending)

··Optional Gemalto secure element for AES-128 cryptographic encryption

··2-way duplex communication

··Multiple I/O interfaces for most any “Thing”

··Data rates 293bps-20Kbps+ LoRa™ up to 300Kbps FSK

··Avaialbe in FW for Australia, AS923, KR920

Model	Description Region
MTXDOT-NA1-A00	915 MHz SMT LoRa UFL/TRC NAM
MTXDOT-NA1-A01	915 MHz SMT LoRa TRC NAM
MTXDOT-EU1-A00	868 MHz SMT LoRa UFL/TRC Euro
MTXDOT-EU1-A01	868 MHz SMT LoRa TRC Euro
MTXDOT-AU1-A00	915 MHz SMT LoRa UFL/TRC AU915
MTXDOT-AU1-A01	915 MHz SMT LoRa TRC AU915
MTXDOT-AS1-A00	915 MHz SMT LoRa UFL /TRC AS923
MTXDOT-AS1-A01	923 MHz SMT LoRa TRC AS923
Developer Kit and Accessories
MTMDK-XDOT-NA1-A00	915 MHz Developer Kit, includes a 915 MHz xDot NAM
MTMDK-XDOT-EU1-A00	868 MHz Developer Kit, includes a 868 MHz xDot Euro
MTMDK-XDOT-AU1-A00	915 MHz Developer Kit, includes a 915 MHz xDot AU915

xDot Datasheet: xDot.pdf

xDot AT command: Dot AT command.pdf

MTMDK Datasheet: MTMDK_UG.pdf

MTMDK Quick Start: MTMDK_QS.pdf

MTXDOT-AU1-A00 - Multitech xDot LoRa module 915 MHz TRC/UFL - AU915
