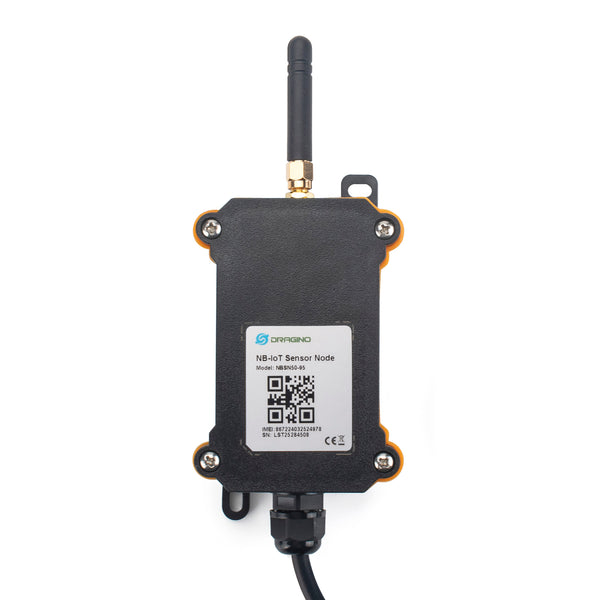

NBSN95 is a Long Range NB-IoT Sensor Node. It is designed for outdoor data logging and powered by 8500mAh Li/SOCl2 battery for long term use and secure data transmission. System Integrator can use NBSN95 to rapidly deploy NB-IoT sensor node for their IoT solution.NBSN95 is easy to program, create and connect things everywhere.

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage.

To use NBSN95, user needs to check if there is NB-IoT coverage in local area and with the bands NBSN95 supports. If the local operate support it, user needs to get a NB-IoT SIM card from local operator and install NBSN95 to get NB-IoT network connection.

NBSN95 is an open source project. It is based on the STM32L072CZT6 ultra-low-power ARM® Cortex®-M0+ micro controller. Developers can get completely software and hardware design files and adapter for their projects.

Features:

STM32L072xxxx MCU
NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
Pre-load bootloader on USART1/USART2
MDK-ARM Version 5.24a IDE
I2C, LPUSART1, USB, SPI2
3x12bit ADC, 1x12bit DAC
20xDigital I/O
Open source hardware / software
IP66 Waterproof Enclosure
Ultra Low Power consumption
AT Commands to change parameters
Micro SIM card slot for NB-IoT SIM
8500mAh Battery for long term use

Applications:

Wireless Alarm and Security Systems
Home and Building Automation
Automated Meter Reading
Industrial Monitoring and Control
Long range Irrigation Systems,etc.

NB-IoT Spec:

Module: Quectel BC95-G
Support BandsProtocol: CoAP, UDP, MQTT
- B1 @H-FDD: 2100MHz
- B3 @H-FDD: 1800MHz
- B8 @H-FDD: 900MHz
- B5 @H-FDD: 850MHz
- B20 @H-FDD: 800MHz
- B28 @H-FDD: 700MHz

MCU Spec:

MCU: STM32L072CZT6
Flash:192KB
SRAM:20KB
EEPROM:6KB
Clock Speed: 32Mhz

Absolute Maximum Ratings:

VCC: 0.5v ~ 3.9v
Operating Tempature: -40 ~ 85°C
I/O pins: 0.5v ~ VCC+0.5V

Common DC Characteristics:

Supply Voltage: 1.8v ~ 3.6v
Operating Tempature: -40 ~ 85°C
I/O pins: Refer STM32L072CZT6 datasheet

Power Consumption:

STOP Mode: 10 μA @ 3.3v
See Power Analyze Document for more.

Battery:

Li/SOCI2 unchargable battery
Capacity: 8500mAh
Self Discharge: <1% / Year @ 25°C
Max continuously current: 500mA
Max boost current: 2A, 1 second

Specifications:

Environment

Operating Temperature

-40 ~ 85°C

Storage Temperature

-40 ~ 85°C

Protection Level

IP66

Datasheet: NBSN95 datasheet.pdf

Operation manual: NBSN95 User manual.pdf

AT command: NBSN95 AT Command.pdf
