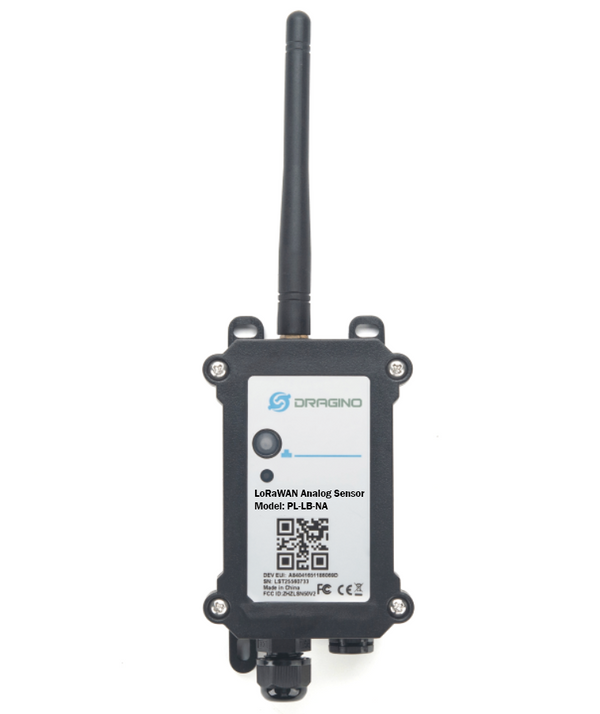

The Dragino PS-LB-NA is a LoRaWAN Analog Sensor for Internet of Things solution. PS-LB-NA has 5v and 12v output , 4~20mA, 0~30v input interface to power and get value from Analog Sensor. PS-LB-NA will convert the Analog Value to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

The LoRa wireless technology used in PS-LB-NA allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

PS-LB-NA supports BLE configure and wireless OTA update which make user easy to use.

PS-LB-NA is powered by 8500mAh Li-SOCI2 battery, it is designed for long term use up to 5 years.

Each PS-LB-NA is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.

Features:

LoRaWAN 1.0.3 Class A
Ultra-low power consumption
1 x 0~20mA input , 1 x 0~30v input
5v and 12v output to power external sensor
Monitor Battery Level
Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
Support Bluetooth v5.1 and LoRaWAN remote configure
Support wireless OTA update firmware
Uplink on periodically
Downlink to change configure
8500mAh Battery for long term use

Applications:

Upgrade the current 0-20mA, 0-30V analogue device to wireless monitoring

Specifications:

Micro Controller:

MCU: 48Mhz ARM
Flash: 256KB
RAM: 64KB

Common DC Characteristics:

Supply Voltage: 2.5v ~ 3.6v
Operating Temperature: -40 ~ 85°C

LoRa Spec:

Frequency Range, Band 1 (HF): 862 ~ 1020 Mhz
Max +22 dBm constant RF output vs.
RX sensitivity: down to -139 dBm.
Excellent blocking immunity

Current Input (DC) Measuring :

Range: 0 ~ 20mA
Accuracy: 0.02mA
Resolution: 0.001mA

Voltage Input Measuring:

Range: 0 ~ 30v
Accuracy: 0.02v
Resolution: 0.001v

Supported Extenal Sensors

Below are some examples field as reference:

Pressure Sensor: level sensors, level probes and pressure transmitters.
Flow: flow of gases, liquids, or sludges.
Level:
Temperature/ Humidity: temperature probes, such as RTD temperature probes, thermocouples.
Liquid analysis: pH values, redox potential, electrolytic conductivity, ammonia, dissolved oxygen, turbidity, chlorine, and much more

Key point for external sensor:

Can be powered by 5v or 12v. Require Current < 1A.
Sensor has output within range: 4~20mA or 0~30v.
Sensor will be power off and power on after deployment. and After power on, it can provide valid output within several seconds.

Battery:

Li/SOCI2 un-chargeable battery
Capacity: 8500mAh
Self-Discharge: <1% / Year @ 25°C
Max continuously current: 130mA
Max boost current: 2A, 1 second

Overview	Dimension	1357030mm
Overview	Net Weight	105g
Radio	Frequency	LoRaWAN® CN470/EU868/US915/AS923Mhz,or
	Working Mode	Class A
	Activation	ABP/OTAA activation;

Power

Input

3.6 VDC battery

Current consumption

Sleep Mode: 5uA @ 3.3v
LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm

LoRaWAN frequency and Countries/Regions

Frequency	Status	Countries/Regions
EU868	OK	Europe and other
AU915, AS923	OK	Australia
		New Zealand
		Brunei
		Cambodia
		Hongkong
		Indonesia
		Japan
		Laos
		Singapore
		Taiwan
		Thailand
		Vietnam
CN470	OK	China
US915	OK	USA
KR920	OK	Korea

Datasheet: PS-LB-NA datasheet.pdf

Operation manual: PS-LB-NA User manual.pdf

Configure manual: PS-LB-NA AT commands.pdf

PS-LB-NA - Dragino LoRaWAN Analog Sensor support 0-20mA, 0-30V, 5/12V output
