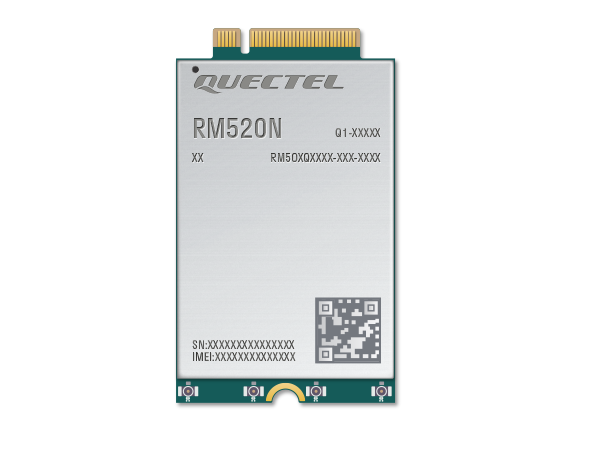

Quectel RM520N is a series of 5G modules optimized specially for IoT/ eMBB applications. Adopting the 3GPP Release 16 technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor, RM520N series is compatible with Quectel 5G module RM50xQ series, LTE-A Cat 6 module EM06 series, Cat 12 modules EM12, EM12xR, EM120K series, and Cat 16 module EM160R-GL, which facilitates customers’ migration from LTE-A to 5G.

RM520N series module is industrial-grade for industrial and commercial applications only.
The global version of RM520N series nearly covers all the mainstream carriers worldwide. The module supports Qualcomm® IZatTM location technology Gen9C Lite (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS receiver greatly simplifies the product design and provides quicker, more accurate and more dependable positioning
capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for Windows, Linux, Android) extend the applicability of the module to a wide range of eMBB and IoT applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video
transmission and digital signage.

Key Feature:

5G/4G/3G multi-mode module with M.2 form factor,
optimized for IoT and eMBB applications
Worldwide 5G and LTE-A coverage
Both NSA and SA modes supported
Multi-constellation GNSS receiver (optional) available for applications requiring fast and accurate fixes in any environment
Feature refinements: DFOTA and VoLTE (optional)

Datasheet: RM520N-GL.pdf

AT command: RM520N-GL AT command

HW guide: RM520N-GL Hw guide

Quectel - RM520N-GL , 5G Sub-6 GHz M.2 NGFF module
