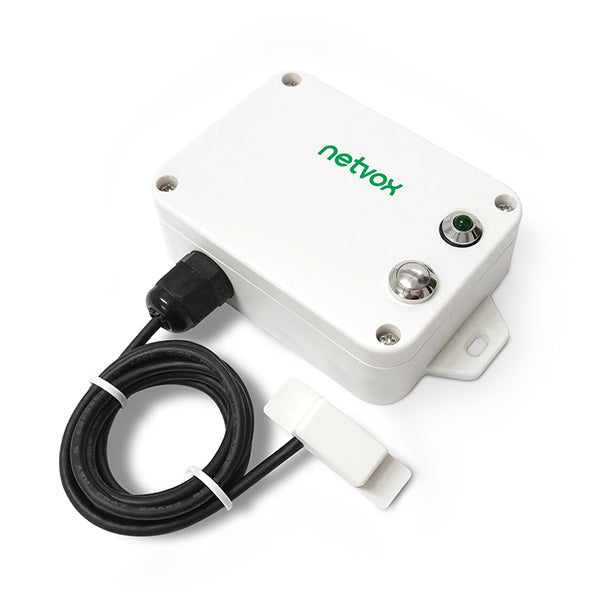

NETVOX Wireless Water Sensor R718WA is an alarm device for water leakage detection. When the water sensor detects a leak, it will send an alarm message to the gateway. When the water sensor detects that there is no water leak again, it will send a back to normal status message to the gateway, which uses the SX1276 wireless communication
module.

Example Applications.

Engine room
Warehouse
Smart home
Archives
Air conditioning
Semiconductor plant
Data centre

Features of NETVOX Sensors

LoRaWANTM Class A compatible
Frequency Hopping Spread Spectrum (FHSS)
Improved interference immunity
Improved power management for longer battery life
Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
Battery Life*:

Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html

At this website, users can find battery life time for varier models at different
Over-the-air updates (future)
Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

* Actual range may vary depending on environment.

* Battery life is determined by sensor reporting frequency and other variables

Technical Specifications

Input Power	2 x 3.6V ER14505 AA lithium batteries
Battery Life	5 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10)
Sleep mode Current	23uA
Wake up mode Current	6.3mA @3.3V
Tx Current	120mA @3.3V
Rx Current	11mA @3.3V
Low Voltage Threshold	3.2V
Battery Voltage measurement accuracy	±0.1V

Frequency

Tx Power	19dBm±1dBm
Rx Sensitivity	-136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type	Build-in antenna
Communication Range	Build-in antenna
Data Transfer Rate	0.3kbps～50kbps
Spread Technique	LoRa/FSK
Available Frequency	EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment

Water Sensor

Water Line Material	UL2547 28AWG
Working Temperature (Max.)	80℃
Diameter	2mm
Length	1000mm (±5mm)
Water Line Flame Resistance Rating	VW-1
Water Line Length Limit	300m (theoretical value)
Water Sensor Size	L: 38.5 mmW: 11.9 mmH: 13.7 mm

Physical

Main Body Dimension	112mm x 65mm x 32mm
Sensor Dimension	43mm x 13mm x 12mm
Operating Temperature	-20℃ ～ 55℃
Environment Humidity Range	<90% RH (No condensation)
Storage Temperature	-40℃ ～ 85℃
