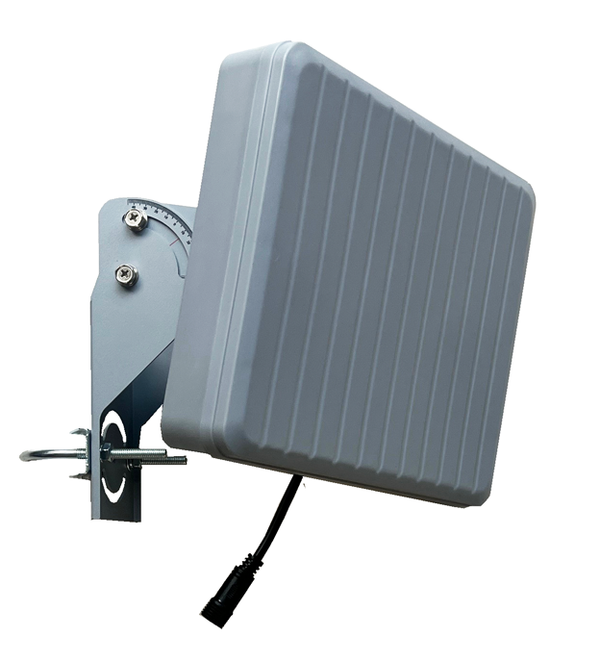

TBRVC310 Microwave Radar traffic counter is a real-time traffic counting sensor for smart cities, providing accurate statistics for optimised traffic management and urban planning.

The Traffic counter integrates with Turbo matured radar system for speeding camera and vehicle counting and increasing triggering accuracy with their long term developed algorithm, it is a reliable non-camera based solution for traffic monitoring, it works in a completely non-camera, non-intrusive, anonymous way.

It is mainly used for traffic counting in city area, sub-urban and rural area. The traffic counter support to count moving object from 4 to 250km/h speed and up 200 meters long detection range in both traffic direction.

TBRVC310 comes with different communications option in LoRaWan, NBIoT, CAT M1.

Feature:

· Highly accurate, radar based traffic detection

· Easy non-intrusive one man installation

· Bidirectional traffic detection up to 4 Lane.

· Support USB type C interface for programming and testing while installation.

· Support BLE for LoRaWan, NBIoT, CAT M1 configuration.

· Built in Battery with 6.6AH (around 3 days not good Sun support) or 13.2AH ( around 7 days support) option

·
Support 12V power connection or Solar power connection.

· External mounting included protractor for easy installation.

· Anonymous counting of Vehicle without a camera

· Counts vehicle from 4 to 250km/h

· Long detection ranges up to 200 meters

· IP67 housing

Specification

Model TBRVC310

Detection accuracy up to 99%

Operating Frequency: 24.15 GHz

Detection surface angle: 5.5°×13°

Detection Speed: 4 to 250km/h

Detection direction: Bi- Directional

Detection Range: 200meters and support up to 4 Lane

Installation Method Pole mount.

Installation Height: Recommend 1-1.5meters (horizontal installation)

Support 2.5-3.5 meters installation (with 10° downward)

Power Supply: Built-in 12V Lithium battery 6.6AH / 13.2AH, 30W solar panel included

Interface: BLE, USB

Warranty: 12 months

Physical parameters

Protection level IP67

Operation Temperature -40℃ ~ 80℃

Operation Humidity: 5-95%

Dimension 225mm x 187mm x 48mm (not include the mount)

Weight 1100 g (6.6AH battery) / 1500g (13.2AH battery)

Datasheet: TBRVC310.pdf

User manual: TBRVC310-UG.pdf

LoRaWan Payload: TBRVC310-payload.pdf
