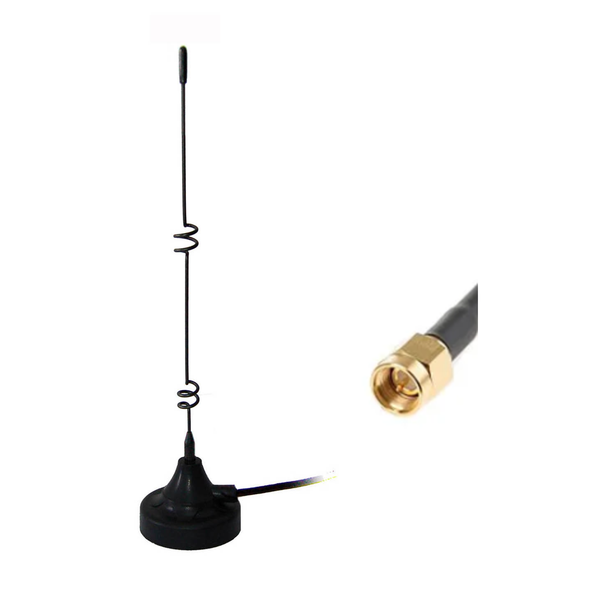

Sku: ANT-LTE-06-3M-SMA
AUD$16.20
Availability:
Many In Stock
Sku: ANT-LTE-06-3M-SMA
RF Cable & Antenna
Elecom Electronics Supply
| Frequency (MHz) | 698-960/1710-2170/2500-2700 |
|---|---|
|
Bandwidth (MHz) |
90/180 |
| VSWR | ≤ 1.5 |
| Gain (dBi) | 3dBi@700MHz; 5dBi@1710-2700MHz |
| Max Input power (W) | 60 |
| Input Impedance (Ω) | 50 |
| Polarization | Vertical |
| Antenna size (mm) | Φ45(Base)×290(Height) |
| Cable length | RG174 300 cm / customised |
| Connector | SMA |
| Mounting | Magnetic based |
| Storage Temperature | -40C to+85C |
| Operating Temperature | -40C to+85C |
Datasheet: ANT-LTE-06.pdf
