Antenna
Antenova

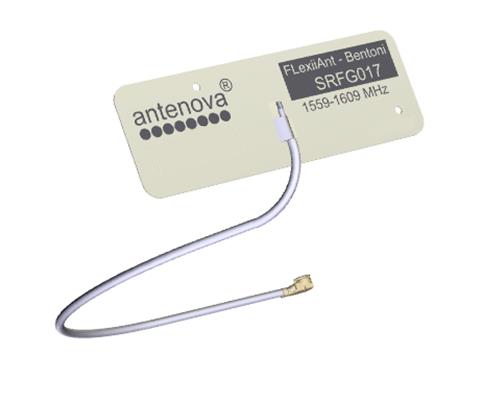

Bentoni is intended for use with all positioning applications. It is a flexible antenna with a cable enabling direct connection to the host PCB for easy integration with plug and play simplicity. This product specification shows the performance of the antenna to cover a typical GNSS reception: 1559 – 1609 MHz.



Features

  • Antenna for 1559 – 1609 MHz applications
  • Solution for all global public constellations: GPS, GLONASS, Beidou and GALILEO
  • Maintains high performance within device: DFI (Designed For Integration)
  • 1.13mm diameter RF cable with I-PEX MHF connector
  • Self-adhesive mounted
  • Quick integration minimizes design cycle  High performance
  • 50mm OR 100mm cable – (other lengths available)



Applications

  • Trackers
  • Portable devices
  • Drones
  • Network devices
  • Wearable devices



General Data

Product name Bentoni
Part Number SRFG017
Frequency 1559 – 1609MHz
Polarization Linear
Operating temperature -40°C to +85°C
Environmental condition test  ISO 16750-4 5.1.1 / 5.1.2
Impedance with matching 50 Ω
Weight < 0.5 g
Antenna Assembly type FPC Self-adhesive 3M 468P
Dimensions (Antenna) 40.0 x 14.0 x 0.15 (mm)
Connection I-PEX MHF1 (20278-112R-13)



RF Characteristics

1559 – 1609 MHz Conditions
Peak gain
Average gain
Average efficiency
Maximum return loss
Maximum VSWR
4.0dBi
 -1.2dBi
>75%
<-14db
1.45:1
All data measured in a loaded condition adhered to a plastic carrier free space.



Documentations

1) GPS Antenna Quick Selection guide

2) SRFG017 specification
