Sku: UMTS<E-EVB-Kit

AUD$258.81
Availability: Many In Stock
Sku: UMTS<E-EVB-Kit
Cellular/GPRS/HSPA
Quectel

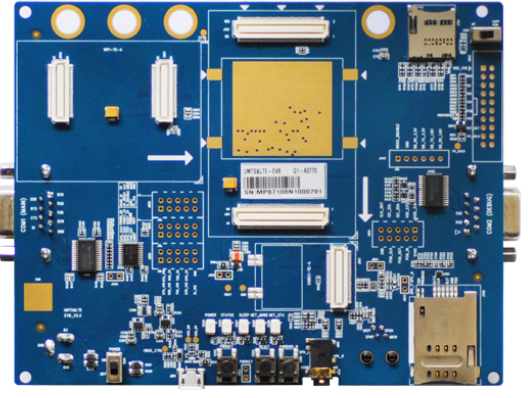

Quectel UMTS & LTE EVB for designers to develop applications based on Quectel UMTS & LTE modules and Wi-Fi modules. This EVB can test basic functionalities of these modules.



Overview

Applicable Modules

  • UC20
  • UGxx1)
  • EC2x2)
  • FC20 series3)
  • EG95
  • BG96

Notes

1)UGxx contains UG35, UG95 and UG96

2)EC2x contains EC25, EC21, EC20 and EC20 R2.0

3)FC20 series includes both FC20 and FC20-N.



EVB Kit Includes



  • USB to UART converter cable X 1
  • USB cable  X 1
  • RF cables X 4
  • Main Antennas X 2
  • GNSS Antenna (passive) X 1
  • Wi-Fi Antenna  X 1
  • Earphone X 1
  • USB 2.0 to RS232 driver and USB driver disk X 1
  • ALC5616 and TLV320AIC3104 codec boards X 2
  • Bolts and nuts for fixing EVB X 1
  • One page of instruction

User Guide: UMTS&LTE EVB User Guide V2.1.pdf

Quectel Universial - UMTS & LTE EVB Kit
