Sku: RI.02.01.3000W

AUD$110.00
Availability: 50 In Stock
Sku: RI.02.01.3000W
RF Cable & Antenna
Taoglas

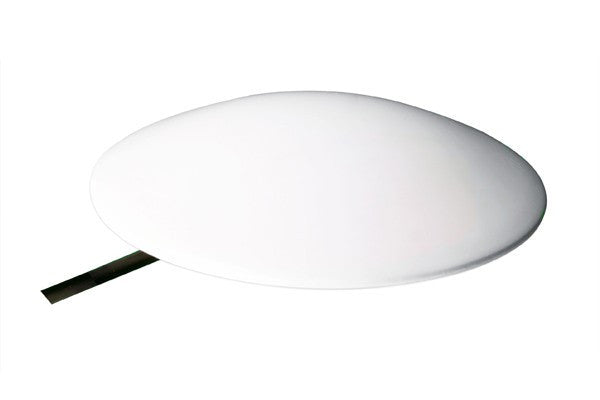

RI.02.01.3000W is the Robust Low profile designed Antenna from Taoglas which is highly suitable to mounting on the Road as the antenna house in a IK 10 enclosure with IP67 rating.


Frequency (MHz) 902-928MHz (offical) , we also tested 4G frequency
Polarization Linear
VSWR  ≤ 1.5
Peak Gain (dBi) 6.2dbi@900MHz
Max Input power (W) 10W
Input Impedance (Ω) 50
Housing and IP rate
IK 10 / IP67
Antenna size (mm) Low Profile - Diameter 101.4mm*Height 17.6 mm
Cable length 1.5M WY-100 cable SMB(M) Jack + 1.5M WY-100 SMB(F) to SMA(M)ST
Connector SMB and SMA
Mounting  Adhesive mount
Storage Temperature -40C to+85C
Operating Temperature -40C to+85C



VSWR testing

900MHz testing

4G frequency testing



Datasheet: RI.02.01.3000W.pdf

Application note: RI.02.01.3000W app note.pdf

Taoglas RI.02.01.3000W - 900MHz Road Marker robust low profile antenna - support 4G freq
