Sku: R718PC-AS923
AUD$223.62
Availability:
Many In Stock
Sku: R718PC-AS923
LoRawan
Netvox

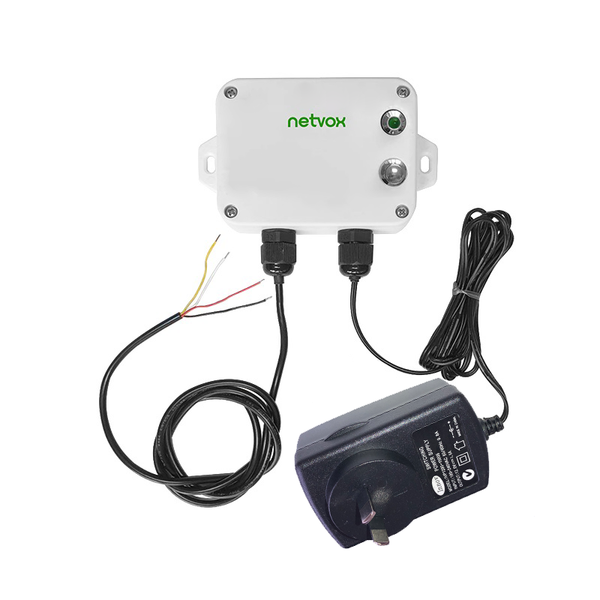

Netvox Wireless RS485 serial port transparent transmission - R718PC can send the read commands to sensors supporting RS485 protocol according to the configured cycle. The information returned by the sensor will be directly reported to the gateway, and be displayed on the interface of the gateway
Features of NETVOX Sensors
• Wireless range of 10 km *
• LoRaWANTM Class C compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*Actual range may vary depending on environment.
*Battery life is determined by sensor reporting frequency and other variables
Technical Specifications
| Input Power | 12V DC |
|---|---|
| Operation current |
35mA |
Frequency
| Tx Power | 19dBm±1dBm |
|---|---|
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Build-in antenna |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment |
Physical
|
Dimension |
L:112mm*W:88.19mm*H:32mm |
|
Weight |
160g |
|
Operating Temperature |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
|
External Cable Length |
1 Meter |
Datasheet:
R718PC.pdf
User manual:
R718PC_UG.pdf
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
