Sku: BG95-M2-TE-A

AUD$60.80
Availability: Many In Stock
Sku: BG95-M2-TE-A
Cellular/GPRS/HSPA
Quectel

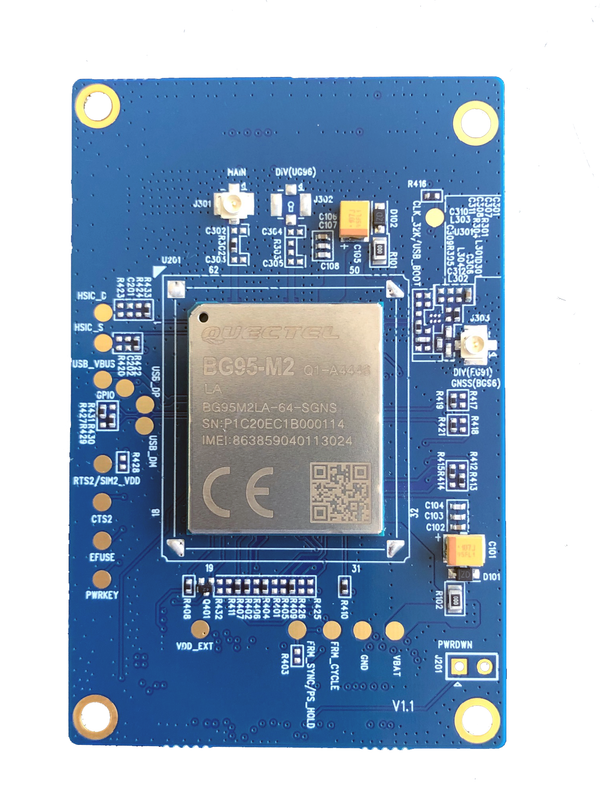

BG95-M2-TE-A is the tester Module suitable for the Quectel "UMTS & LTE EVB KIT", you could buy the bundled package from us or separted TE-A module if you already have the "UMTS & LTE EVB KIT"



BG95 is a series of multi-mode LPWA modules supporting LTE Cat M1/Cat NB2/EGPRS and integrated GNSS.It is 3GPP Rel-14 compliant and offers maximum data rates of 588 kbps downlink and 1119 kbps uplink under LTE Cat M1. It features ultra-low power consumption by leveraging the integrated RAM/flash as well as the ARM Cortex A7 processor supporting ThreadX, achieving up to 70% reduction in PSM leakage and 85% reduction in eDRX current consumption compared to its predecessor.



BG95 boasts a comprehensive set of hardware-based security features and enables trusted applications to run directly on the Cortex A7 TrustZone engine. Additionally, BG95 provides pin-to-pin compatibility with Quectel LTE Cat 4 modules EG91/EG95, LTE Cat M1/Cat NB1/EGPRS module BG96, NB-IoT module BC95, UMTS/HSPA modules UG95/UG96 and GSM/GPRS module M95.



With a cost-effective SMT form factor of 23.6 mm × 19.9 mm × 2.2 mm and high integration level, BG95 enables integrators and developers to easily design their applications and take advantage from the module's low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications. A rich set of Internet protocols, industry-standard interfaces and abundant functions extend the applicability of the module to a wide range of M2M applications such as wireless POS, smart metering, tracking, wearable devices, etc.
Key



Key feature

● LTE Cat M1/Cat NB2/EGPRS module with ultra-low power consumption

● Easy migration from Quectel GSM/GPRS, UMTS/HSPA and LTE modules

● Integrated RAM and flash in the baseband chipset

● Comprehensive set of hardware-based security features

● Support VoLTE* (Cat M1 only), CS voice* for GSM, QuecOpen®, eSIM, etc.

● Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development efforts

● Compact SMT form factor ideal for size-constrained applications with tight space

● Robust mounting and interfaces


    Specification



    LPWA Module

    BG95-M1

    BG95-M2

    BG95-M3

    BG95-N1

    Region/Operator

    For the Global

    For the Global

    For the Global

    For the Global

    LTE FDD

    Cat M1 Only:
    B1/B2/B3/B4/B5/B8/
    12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B66/B85

    Cat M1:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B66/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B66/B71/B85

    Cat M1:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B66/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B66/B71/B85

    Cat NB2 Only:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B66/B71/B85

    GSM/EDGE

    /

    /

    850/900/1800/1900 MHz

    /

    GNSS (Optional)

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    Wi-Fi (For Positioning)

    /

    /

    /

    /

    Certification

    Carrier:

    America:
    Verizon/AT&T/Sprint

    Regulatory:

    Global: GCF
    Europe: CE
    North America:
    PTCRB
    America: FCC
    Canada: IC
    Japan: JATE*/TELEC*
    Australia/New Zealand:
    RCM

    Others:

    RoHS

    Carrier:

    Europe:Vodafone*/
    Deutsche Telekom*/
    Telefónica*
    America:
    Verizon/AT&T/Sprint/
    T-Mobile*
    Canada:
    Rogers*/Telus*
    China:
    China Telecom*/
    China Mobile*/
    China Unicom*

    Regulatory:

    Global: GCF
    Europe: CE
    North America:
    PTCRB
    America: FCC
    Canada: IC
    Brazil: Anatel
    Mexico: IFETEL*
    China:
    SRRC*/NAL*/CCC*
    South Korea: KC*
    Taiwan China: NCC*
    Japan: JATE*/TELEC*
    Australia/New Zealand:
    RCM
    Thailand: NBTC*
    Singapore: IMDA*

    Others:

    RoHS/ATEX*

    Carrier:

    Europe:
    Vodafone*/
    Deutsche Telekom*/
    Telefónica*
    America:
    Verizon/ AT&T/
    Sprint/T-Mobile*
    Canada:
    Rogers*/Telus*
    China:
    China Telecom*/
    China Mobile*/
    China Unicom*

    Regulatory:

    Global: GCF
    Europe: CE
    North America:
    PTCRB
    America: FCC
    Canada: IC
    Brazil: Anatel
    Mexico: IFETEL*
    China:
    SRRC*/NAL*/CCC*
    South Korea: KC*
    Taiwan China: NCC*
    Japan: JATE*/TELEC*
    Australia/New Zealand: RCM
    Thailand: NBTC*
    Singapore: IMDA*

    Others:

    RoHS/PEN/ATEX*

    Carrier:

    TBD

    Regulatory:

    TBD

    Others:

    TBD



    LPWA Module

    BG95-M4

    BG95-M5

    BG95-M6

    BG95-MF*

    Region/Operator

    For the Global

    For the Global

    For the Global

    For the Global

    LTE FDD

    Cat M1:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B31/B66/B72/
    B73/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B31/B66/
    B72/B73/B85

    Cat M1:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B66/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B66/B71/B85

    Cat M1:

    B1/B2/B3/B4/B5/B8/

    B12/B13/B18/B19/

    B20/B25/B26/B27/

    B28/B66/B85

    Cat NB2:

    B1/B2/B3/B4/B5/B8

    /B12/B13/B18/B19/

    B20/B25/B28/B66/

    B71/B85

    Cat M1:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/
    B20/B25/B26/B27/B28/
    B66/B85
    Cat NB2:
    B1/B2/B3/B4/B5/B8/
    B12/B13/B18/B19/B20/
    B25/B28/B66/B71/B85

    GSM/EDGE

    /

    850/900/1800/1900 MHz

    /

    /

    GNSS (Optional)

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    GPS/GLONASS/BeiDou/
    Galileo/QZSS

    Wi-Fi (For Positioning)

    /

    /

    /

    2.4 GHz

    Certification

    Carrier:

    /

    Regulatory:

    Europe: CE*
    Brazil: Anatel*

    Others:

    RoHS*

    Carrier:

    Europe:
    Vodafone*/
    Deutsche Telekom*
    America:
    Verizon*/AT&T*/
    T-Mobile*/Sprint*
    China:
    China Telecom*/
    China Mobile*/
    China Unicom*
    South Korea:
    SKT*/LGU+*
    Japan:
    NTT DOCOMO*/
    SoftBank*/KDDI*
    Australia: Telstra*

    Regulatory:

    Global: GCF*
    Europe: CE*
    North America:
    PTCRB*
    America: FCC*
    Canada: IC*
    China:
    SRRC*/NAL*/CCC*
    South Korea: KC*
    Taiwan China: NCC*
    Japan: JATE*/TELEC*
    Australia/New Zealand:
    RCM*
    Thailand: NBTC*
    Singapore: IMDA*

    Others:

    RoHS

    Carrier:

    Europe:
    Vodafone*/
    Deutsche Telekom*
    America:
    Verizon*/AT&T*/
    T-Mobile*/Sprint*
    China:
    China Telecom*/
    China Mobile*/
    China Unicom*
    South Korea:
    SKT*/LGU+*
    Japan:
    NTT DOCOMO*/
    SoftBank*/KDDI*
    Australia: Telstra*

    Regulatory:

    Global: GCF*
    Europe: CE*
    North America:
    PTCRB*
    America: FCC*
    Canada: IC*
    China:
    SRRC*/NAL*/CCC*
    South Korea: KC*
    Taiwan China: NCC*
    Japan: JATE*/TELEC*
    Australia/New Zealand:
    RCM*
    Thailand: NBTC*
    Singapore: IMDA*

    Others:

    RoHS

    Carrier:

    /

    Regulatory:

    Global: GCF*
    Europe: CE*
    North America:
    PTCRB*
    America: FCC*
    Canada: IC*
    Australia/New Zealand:
    RCM*

    Others:

    RoHS





     Datasheet:        BG95.pdf

     HW guide:         BG95 HW guide.pdf

     AT command:    BG95 AT command.pdf

    BG95-M2-TE-A CATM1 & NBIoT2 tester module
