EC25-E miniPCIE - Quectel 4G LTE Cat4 miniPCIE card - 150Mbps for EMEA/Korea/Thailand

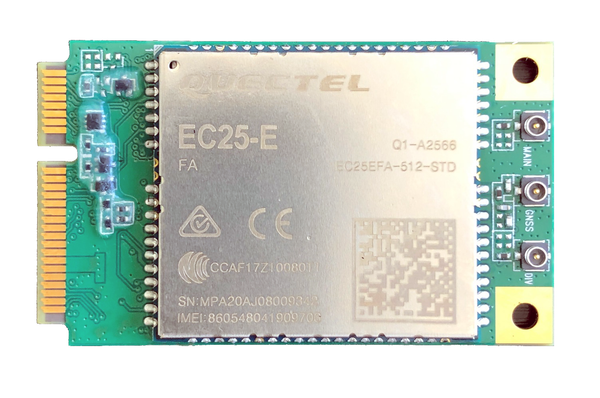

 Quectel EC25-E 4G LTE miniPCIE card  - 150Mbps Downlink for EMEA/Korea/Thailand

EC25 Mini PCIe contains 5 variants: EC25-J Mini PCIe, EC25-E Mini PCIe, EC25-AU Mini PCIe, EC25-V Mini PCIe and EC25-A Mini PCIe. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows XP, Windows Vista, Windows 7/8/8.1/10, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.

Key feature

• LTE FDD: B1/B3/B5/B7/B8/B20
  LTE TDD: B38/B40/B41
  WCDMA: B1/B5/B8
  GSM: B3/B8
• LTE Downlink:150Mbps, Uplink:  50Mbps
• HSPA+ Downlink:42Mbps, Uplink:  5.76Mbps
• Embedded GPS/GLONASS/BeiDou/Galileo/QZSS function
• Embedded with QuecLocator for cell location services
• Support 1 four line UART ports
• Support USB 2.0 High speed
• Embedded with TCP/IP stack, FOTA, STK
• Extended operation temperature -40 to 85C
• Support Win7/8/10, Linux, Android OS0/4.2/4.4/5.0/5.1/6.0
• Support Rx-diversity antenna
• Telstra and worldwide approved

Datasheet:        EC25-E miniPCIE.pdf

 HW guide:         EC25-E miniPCHW guide.pdf

 AT command:    AT command.pdf
