Sku: A-9N

Availability: Many In Stock
Sku: A-9N
Elecom Electronics Supply

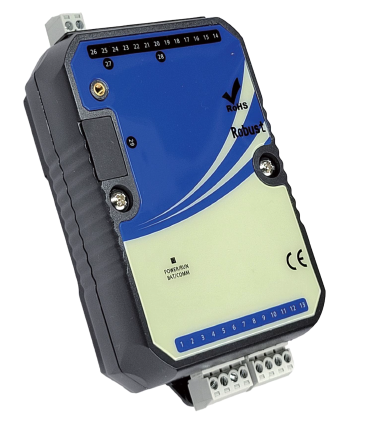

    The A-9N provided by ATC is a Fanless Edge Computing Controller for Ethernet and serial port. Compared with traditional Industrial controllers, various interfaces help mutual data exchange, and shared program support various industrial projects.

    The A-9N can be used for Ethernet data transmission and other functions through its third party 4G / 5G communication module. With the third party GPS function, the A-9N can also be used as a GPS tracking system for vehicle management or maritime system.
    It can be used in M2M application to transmit remote I/O, Modbus data or camera video.


    Within the high-performance CPU, the A-9N can process large amounts of
    data and is suitable for harsh industrial environments.



    - TI Cortex-A8 ARM 1GHz
    - DDR3 512MB onboard
    - eMMC 8GB onboard
    - 1 x USB 2.0 Host for Wi-Fi module / USB-HUB / KEYboard
    I/O Interface-Front
    - 1 x Power LED
    - 1 x RJ-45 10/100M fast Ethernet with LED
    - 1 x USB Host 2.0 type A
    - 1 x Phoenix connector for power
        (24~36VDC)/GND/ignition input
    I/O Interface-Rear
    - 1 x HDMI for 1920 x 1080@60Hz output
    - 3 x RS-485
    Power Consumption
    - Max 10W
    Power Management
    - Auto Boot
    Operating System
    - Linux (Debian 11.5)
    - Built-in NODE-RED
    - 72mm (W) x 118mm (D) x 34mm (H)
    - 0.2kg
    - Operating temperatures: -20°C to +70°C
    - Storage temperatures: -20°C to +85°C
    - Relative humidity: 90% (non-condensing)




           Main Feature

    • Ready-to-use IoT gateway to accelerate IoT project deployment
    • Open architecture support both ARM-based IoT gateway
    • One-click deployment to cloud
    • Cloud SCADA presentation
    • Real-time information response
    • Support Modbus,OPC-UA,MQTT,SQL,BACNET...



    A9N - Small Industrial Edge Computing Controller with Node RED support
