Sku: ANT-LTE-15-300-NF
AUD$63.50
Availability:
Many In Stock
Sku: ANT-LTE-15-300-NF
RF Cable & Antenna
Elecom Electronics Supply
| Frequency (MHz) | 700-270MHz |
|---|---|
|
Cover |

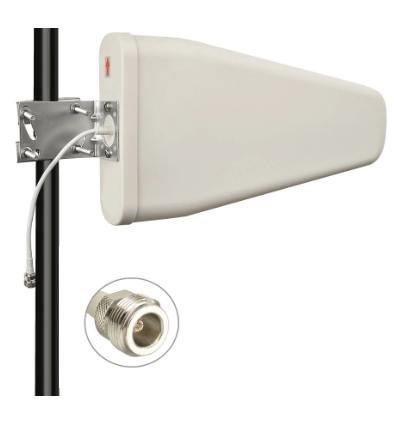

Yagi antenna with plastric cover |
| VSWR | ≤ 1.5 |
| Gain (dBi) | 10 |
| Max Input power (W) | 100 |
| Input Impedance (Ω) | 50 |
| Polarization | Vertical |
| Horizontal Beam Width | 90° |
| Vertical Beam Width | 60° |
| Front to Back ratio | ≥18 dB |
| Lightning Protection | Direct Ground |
| Antenna size : (mm) | 300mm×210mm×65mm |
| Cable length | 30cm |
| Connector | N-Female |
| Mounting | U- mount |
| Storage Temperature | -30C to+85C |
| Operating Temperature | -30C to+85C |
Datasheet: ANT-LTE-15.pdf
