Sku: ANT-LTE-BG1012
AUD$50.00
Availability:
Out Of Stock
Sku: ANT-LTE-BG1012
Antenna
Elecom Electronics Supply

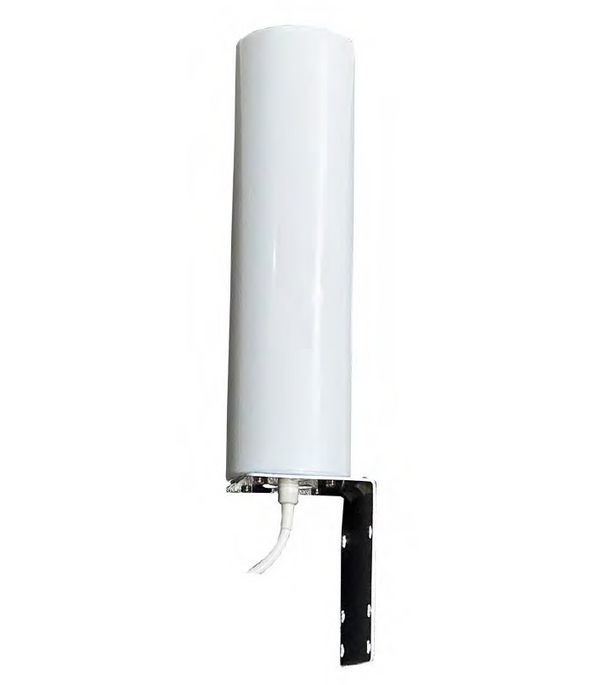

ANT-LTE-BG1012 - LTE 4G/5G high gain antenna 698-4000MHz
This antenan is suitable for all outdoor 4G / NBIoT/ CATM1/ LoRaWan and 5G applications.
It has a high gain support but not in long antenna size as those fibre glass antenna.
| Frequency (MHz) | 700-4000MHz |
|---|---|
|
Cover |
plastric cover |
| VSWR | ≤ 1.5 |
| Gain (dBi) | 6 |
| Max Input power (W) | 60 |
| Input Impedance (Ω) | 50 |
| Polarization | Vertical |
| Antenna size : (mm) | 62mm×235mm |
| Cable length | 1 Meter |
| Connector | N-Female |
| Mounting | U- mount |
| Storage Temperature | -45C to+85C |
| Operating Temperature | -45C to+85C |
Datasheet: ANT-LTE-BG1012.pdf
