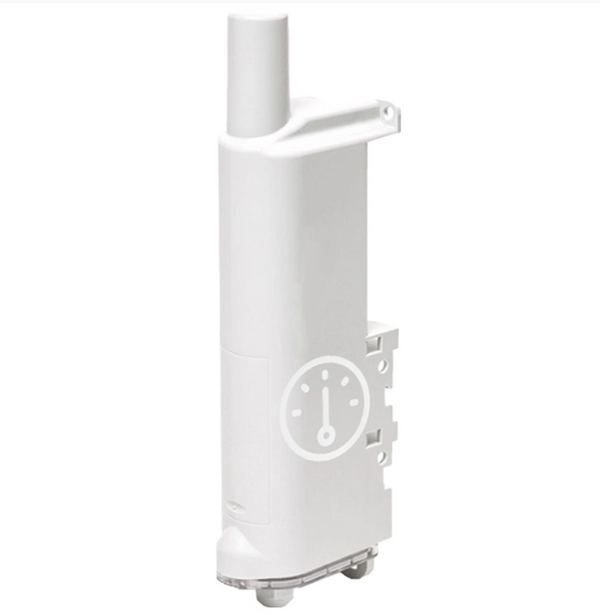

ARF8428AAA - Adeunis IP68 CAT M1/NBIoT Pulse counter

Sku: ARF8428AAA

AUD$341.09

Availability: Many In Stock

Sku: ARF8428AAA

Product Type: Cellular/GPRS/HSPA

Vendor: Adeunis

Description

ARF8428AAA - Adeunis IP68 CAT M1/NBIoT Pulse counter sensor for Water meters and Electricty meters

Connect your meters to the IoT network with the ARF8428AAA, an IP68-rated pulse counter designed for water, electricity, and heat meters. This NB-IoT and LTE-Cat-M1 enabled sensor reads consumption data to help you monitor energy usage and plan equipment maintenance based on cycle counts.

The wireless sensor connects easily to any meter or equipment with pulse output—including dry contact, REED, S0 relay, or open collector types. It continuously counts pulses, stores meter readings, and transmits data via MQTT(S) or LwM2M protocols to your IoT platform.

Built and tested in France, this sensor offers worldwide cellular compatibility with up to 15 years of battery autonomy under standard configuration. Two configurable pulse inputs let you monitor multiple meters simultaneously, while NFC configuration keeps setup simple and field-friendly.

HIGHLIGHTS OF THE CELLULAR IOT SENSOR

Designed and manufactured in France
Worldwide cellular compatibility
Multi-platform integration using LwM2M and MQTTS standards
Up to 15 years of autonomy with standard configuration
2 configurable pulse inputs to connect 1 or 2 meters or equipment with pulse output (dry contact, REED, S0 relay or open collector).
Configuration via NFC
Global cellular compatibility
(NB-IoT, LTE-M) with excellent indoor coverage.
Multi-platform integration
via LwM2M 1.1 or MQTT/MQTTS.
2 configurable pulse inputs:
connect 1 or 2 meters / pulse output devices (dry contact, REED, S0, open collector).
Supports 2-wire / 3-wire / 4-wire / 5-wire metering, including flow direction / reverse flow use cases.
Fraud/tamper wire cut detection
with configurable sampling and threshold.
Fast local setup & diagnostics
with the IoT Configurator NB-IoT/LTE-M mobile app via NFC (before or after deployment).
Historization & buffering:
batch transmissions for better battery life / lower data, plus data protection during outages (up to 800/400/300/400 stored values depending on meter type).

Datasheet: ARF8428AAA pulse.pdf

User manual: ARF8428AAA L2M2M manual.pdf

ARF8428AAA MQTT manual.pdf
