Sku: BG950AGLAA-N06-SGNSA

AUD$20.63
Availability: Many In Stock
Sku: BG950AGLAA-N06-SGNSA
Cellular/GPRS/HSPA
Quectel

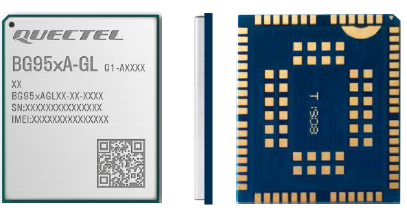

Quectel BG950A-GL LTE Cat.M1 & Cat.NB2 (NB-IoT) & EGPRS Module, available in Elecom Electronics Supply



BG95xA-GL is an ultra-compact LPWA module compliant with 3GPP E-UTRA Release 13/14* specification. The module supports LTE Cat M1/NB1/NB2*/GPRS bands and integrated SIM (iSIM). Besides, it features ultra-low power consumption implemented by MIPS 5150 processor and integrated RAM and flash, which help reduce current
consumption to rather low levels in various modes, including PSM, eDRX etc. It is further integrated with a GNSS engine that supports GPS, GLONASS, Galileo, BDS and QZSS systems and a cellular-based positioning engine that supports Polte and QuecLocator®. BG95xA-GL comes in five variants: BG950A-GL, BG951A-GL, BG952A-GL, BG953A-GL* and BG955A-GL*



BG95xA-GL boasts a comprehensive hardware-based security feature - Integrated Security Elements (ISE). With an ultra-compact SMT form factor of 23.6 mm × 19.9 mm × 2.2 mm and a high integration level, the module enables integrators and developers to design applications easily leveraging its low power consumption and compact structure design. The BG95xA-GL’s advanced LGA package allows for fully automated manufacturing required for large-scale applications.


A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of M2M applications, such as wireless POS, smart metering, tracking, wearable devices,
and many more.



Key feature

  • Extremely compact LTE Cat M1/NB1/NB2*/GPRS module with ultra-low power consumption
  • Integrated RAM and flash
  • Super slim profile in LGA package
  • Support integrated SIM (iSIM)
  • Embedded with abundant Internet service protocols
  • Support QuecLocator®, Polte and DFOTA
  • Support second development of embedded applications, ARM Cortex M4 processor, running FreeRTOS
  • A rich set of external interfaces (including RF control interfaces) that ensure convenient applications
  • Fast time-to-market: reference designs, evaluation tools and timely technical support minimize time and efforts in design and development
  • Robust mounting and interfaces



    Specification





     Datasheet:        BG950A-GL.pdf

     HW guide:         BG950A-GL HW guide.pdf

     AT command:    BG950A-GL AT command.pdf

    BG950A-GL - Quectel BG950A-GL Multimode Cat M1 / NB2 (NB-IoT) module
