Sku: CB-U.FL-RARPSMA-113-1800
AUD$6.87
Availability:
Many In Stock
Sku: CB-U.FL-RARPSMA-113-1800
RF Cable & Antenna
Elecom Electronics Supply

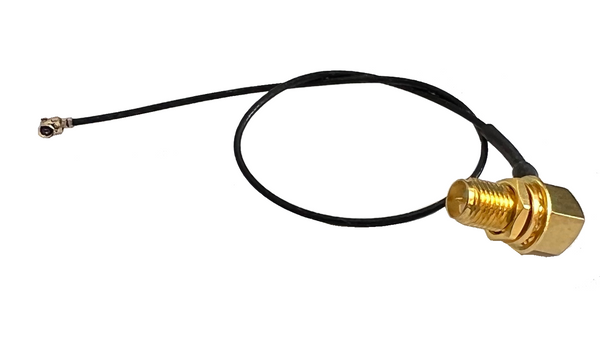

| Style | Right Angle RP-SMA to U.FL |
|---|---|
| 1st Connector | Right Angle RP-SMA Female Jack, Male Pin |
| 2nd Connector | Ultra Miniature Coaxial Plug Female Socket, Right Angle |
| Cable Length | 180mm |
| Cable Type | 1.13mm OD Coaxial Cable |
| Impedance | 50 Ohm |
| Frequency - Max | 6GHz |
| Color | Black |
