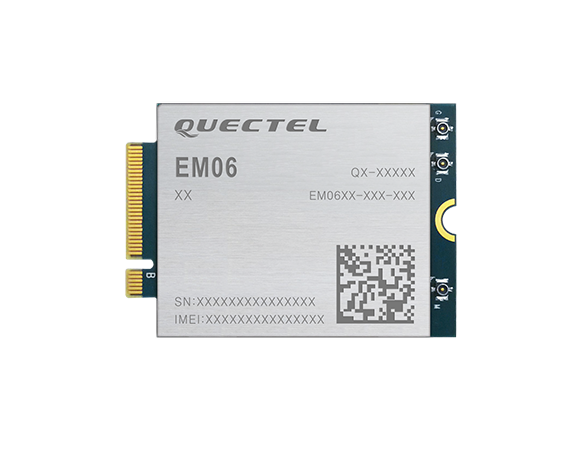

Quectel EM06-E 4G LTE Cat 6 M.2 card


Quectel EM06 is a series of LTE Advanced category 6 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel. 11 LTE technology, it delivers maximum data rates up to 300Mbps downlink and 50Mbps uplink.

Designed in the M.2 form factor, EM06 contains 3 variants (EM06-E, EM06-J and EM06-A) for different target regions and these variants nearly cover all the main stream carriers worldwide. EM06 supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as
industrial router, home gateway, set top box, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, video surveillance and digital signage, etc.

Key feature


  • FDD LTE: B1/B3/B5/B7/B8/B20/B28/B32; TDD LTE: B38/B40/B41
  • WCDMA: B1/B2/B5/B8;
  • LTE Downlink:300Mbps, Uplink:  50Mbps
  • HSPA+ Downlink:42Mbps, Uplink:  5.76Mbps
  • Embedded GPS/GLONASS/BeiDou/Galileo/QZSS function
  • Embedded with QuecLocator for cell location services
  • Support USB 3.0 High speed
  • Embedded with TCP/IP stack, FOTA, STK
  • Extended operation temperature -40 to 85C
  • Support Windows 7/8/8.1/10, Linux 2.6~5.4, Android 4.x/5.x/6.x/7.x/9.x
  • Support Rx-diversity antenna
  • Telstra and worldwide approved
  • LTE-A Cat 6 module with M.2 form factor, optimized for M2M and IoT applications
  • Support LTE-A carrier aggregation
  • Worldwide LTE-A and UMTS/HSPA(+) coverage
  • Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
  • Feature refinements: supports DFOTA and DTMF
  • MIMO technology meets demands for data rate and link reliability in modem wireless communication systems



 Datasheet:        EM06-E.pdf

 HW guide:         EM06-E HW guide.pdf

 AT command:    AT command.pdf

EM06-E - Quectel 4G LTE Cat6 M.2 Card - AU version
