Sku: IDS-5011-WG

AUD$325.00
Availability: Many In Stock
Sku: IDS-5011-WG
WiFi
ORing Industrial Networking Corp.

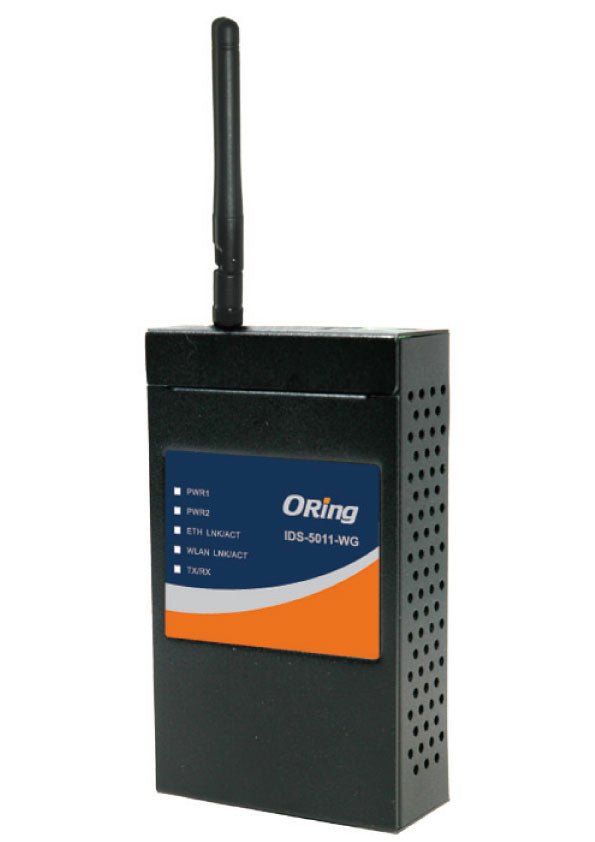

Industrial 1-port secure serial to 802.11 b/g WLAN and 1-port 10/100TX Device Server



IDS-5011-WG



IDS-5011-WG is an innovative secure 1-port RS232/422/485 to 802.11b/g WLAN, up to 54Mbps, and 1-port LAN device server featuring the standard features of device server, such like TCP/IP interface and versatile operation modes : Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP. In addition, the Windows utility, DS-Tool, could configure multiple devices and set up the mappings of Virtual Com. The features of NAT Router Pass-Through, DDNS, and PPPoE make it more convenient for administrators to configure ORing’s device servers through NAT router from different IP domains or Internet via modem remotely. On the other hand, IDS-5011-WG can simultaneously transfer data up to 5 redundant host PCs to aovid Ethernet connection breakdown or any host PC fails. Further, IDS-5011-WG features HTTPS, SSH, SSL encryption, and 802.1X to assure the security of critical data transmission.
IDS-5011-WG supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on DC power jack and terminal block to guarantee a non-stop operation. With wide operating temperature, -10~65°C, and rugged IP-30 housing design, IDS-5011-WG could operate in the harsh industrial environment. Therefore, IDS-5011-WG is the best solution to the high demand of secure serial to WLAN critical data communication.

IDS-5011-WG supports RS-232/422/485 and provides dual redundant power inputs, 12~48 VDC, on DC power jack and terminal block to guarantee a non-stop operation. With wide operating temperature, -10~65°C, and rugged IP-30 housing design, IDS-5011-WG could operate in the harsh industrial environment. Therefore, IDS-5011-WG is the best solution to the high demand of secure serial to WLAN critical data communication





Feature:

  • High Speed Air Connectivity : WLAN interface support up to 54Mbps link speed
    •Operating Modes : Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
    •Redundant multiple host devices : 5 host devices : Virtual COM, TCP Server, TCP Client mode 4 IP
    ranges : UDP
    •NAT Pass-Through : the user can manage IDS-5011-WG through NAT router
    •High Security Capability : SSL data encryption ; secured management by HTTPS and SSH ; IP Access : IP
    White List ; wireless : WEP/WPA/PA2/802.1X/TKIP
    •Internet Communication : PPPoE authentication
    •Update DNS Hostname : DDNS
    •Event Warning by Syslog, Email, SNMP trap, and Beeper
    •Configurable by Web-based and Windows utility (DS-Tool)
    •Various Windows O.S. supported : Windows NT/2000/ XP/ 2003/VISTA(32/64bit)/ Windows 7(32/64bit)





DataSheet

Preview Version Release date Size
Datasheet_IDS-5011-WG.pdf Not Available 1.4 Jan 05, 2010 552.7 KB



Manual Preview Version Release date Size
User Manual_IDS-5011-WG.pdf Not Available   Jan 13, 2010 2.37 MB



Certification Preview Version Release date Size
CE-IDS-5011_IDS-5012_IDS-5011F-MM_IDS-5011F-SS_IDS-5011-WG.pdf Not Available   Jan 07, 2010 383.03 KB
FCC-IDS-5011_IDS-5012_IDS-5011F-MM_IDS-5011F-SS_IDS-5011-WG.pdf Not Available   Jan 07, 2010 276.49 KB



QIG Preview Version Release date Size
QIG_DS.pdf Not Available 1.2 Jan 22, 2010 671.75 KB



Software Release Note Version Release date Size
DS-Tool-x64_V2.7.zip See detail V2.7 Nov 26, 2012 2.7 MB
DS-Tool_V2.7.zip See detail V2.7 Nov 26, 2012 2.72 MB



Firmware Release Note Version Release date Size
IDS-5011-WG_V2.02.zip See detail V2.02 Jan 03, 2013 4.6 MB

*Please read this "Release Note" carefully before downloading this version software(Firmware).



Form Prview Version Release date Size
ORING-RMA-Form.doc Not Available   Jan 08, 2010 78 KB





IDS-5011-WG Industrial 1-port secure serial to WiFi device Server
