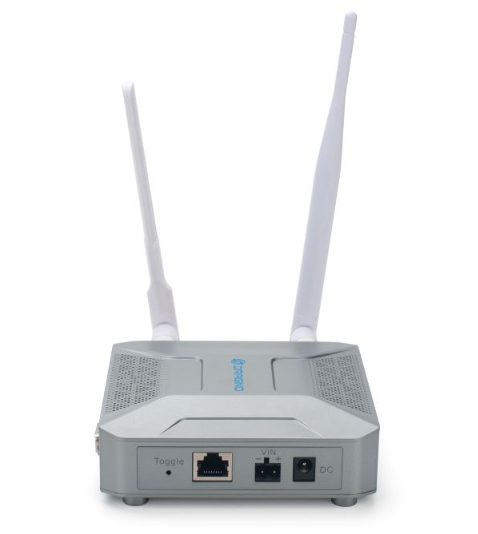

The MS48-LR serves as a robust LoRaWAN-to-Modbus gateway, seamlessly integrating long-range wireless sensor networks with industrial control systems. This open-source device bridges LoRa communications to IP networks through WiFi, Ethernet, or optional 4G connectivity, enabling extended-range data transmission at reduced bandwidth requirements. Featuring an embedded LoRaWAN Server and IoT platform, it accommodates multiple LoRaWAN endpoints while providing Modbus network access for PLC integration. The gateway arrives pre-configured with regional frequency bands and supports custom frequency customization for proprietary deployments. Built-in remote management capabilities allow system integrators to monitor performance and execute maintenance tasks from any location, streamlining operational oversight across distributed installations.

Features:

Open Source Debian system
Managed by Web GUI, SSH via LAN or WiFi
10 programmable parallel demodulation paths
Pre-configured to support different LoRaWAN regional settings.
Allow customizing LoRaWAN regional parameters. Different kinds of LoRaWAN Connections such as:
- Semtech UDP Packet Forwarder
- LoRaWAN Basic Station
- ChirpStack-Gateway-Bridge (MQTT)
Remote Monitoring
Auto-provisioning for batch deployment and management
LoRaWAN Gateway
Built-in ChirpStack local LoRaWAN server Built-in Node-Red local Application server Act as Modbus Slave mode
Power Input: 12V, 2A, DC
Operating Temperature：-20~70°C

Specifications:

Hardware System:

CPU: Quad-core Cortex-A7 1.2Ghz
RAM: 512MB
eMMC: 4GB

Interface:

10M/100M RJ45 Ports x 1
Multi-Channel LoRaWAN Wireless
WiFi 802.11 b/g/n
USB 2.0 host connector x 1
Mini-PCI E connector x 1
RS485 Interface x 1
RS232 Interface x 1

LoRa Spec:

Up to -140 dBm sensitivity with SX1250 Tx/Rx front-end
70 dB CW interferer rejection at 1 MHz offset
Able to operate with negative SNR, CCR up to 9dB
Emulates 49 x LoRa demodulators and 1 x (G)FSK demodulator
Dual digital TX & RX radio front-end interfaces
10 programmable parallel demodulation paths
Dynamic data-rate (DDR) adaptation
True antenna diversity or simultaneous dual-band operation

Cellular 4G LTE (optional):

4G module link for DIY customer

Quectel: EC25AU miniPCIE module, CAT 4 AU
Quectel: EG25G miniPCIE module, CAT 4 Global
Quectel: EC21AU miniPCIE module, CAT 1 AU
Quectel: EG21G miniPCIE module, CAT 1 Global
Standard Size SIM Slot
2 x 4G Sticker Antenna.
Worldwide LTE,UMTS/HSPA+, and GSM/GPRS/EDGE coverage
MIMO technology meets demands for data rate and link reliability in modem wireless communication systems

Datasheet: MS48-LR datasheet.pdf

Operation manual: MS48-LR User manual.pdf
