Sku: MTCAP-915-001A-AU

AUD$583.92
Availability: Many In Stock
Sku: MTCAP-915-001A-AU
LoRawan
MULTI-TECH SYSTEM INC

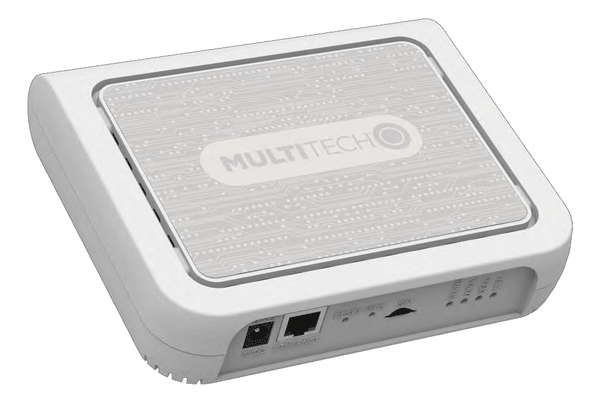

MultiConnect® Conduit® AP

Access Point for LoRa®Technology LoRaWANTM to IP Border Gateway - Ethernet only



The MultiConnect® Conduit® AP conveniently provides deep in-building connectivity and improved performance for network operators and enterprises connecting thousands of IoT assets by harnessing the power of the LoRaWANTM protocol.

Based on the award-winning MultiConnect® Conduit® gateway, the easy-to-deploy Conduit AP access point with integrated antennas can be mounted on walls or ceilings to extend LoRa® connectivity in commercial buildings like hotels, convention centers, offices and retail facilities providing coverage in difficult to reach areas cell tower or rooftop deployments may not penetrate.

The Conduit AP features two development environments for developers and users alike. Advance developers may select the mLinux, Yocto Linux BSP, ideal for integrating directly to a LoRaWAN Network Server managed remotely in the cloud, enterprise data center or a public operators’ core network. Whereas the AEP features a GUI based environment for easy set-up and comes with a built-in LoRa Network Server ideal for setting up a private LoRa network to connect locally clustered IoT assets directly to your choice of IoT data platforms. The AEP comes with certified connectors for leading IoT platforms and extends complex event processing to the network edge reducing upstream communication and ongoing operational costs.

Whether you plan to deploy your own private LoRa network to your cloud IoT platform or deploy with leading LoRaWAN Network Servers as a managed public network, the Conduit AP access point provides you a quick to deploy in-building LoRaWAN gateway with a choice of 4G-LTE or Ethernet IP backhaul.



KEY BENEFITS

  • Provide Improved Service Level Agreements for LoRa
  • Affordable LoRa connectivity in or around commercial buildings
  • Configurable Ethernet for WAN
  • Quick and easy to deploy
  • Certified and carrier approved

FEATURES

  • LoRa Omni-Directional internal antenna with +2 dBi gain for 868/915 MHz ISM band
  • Ethernet RJ-45 10/100 BaseT for IP backhaul
  • Support for maximum 27dBm Transmitter Power Output
  • Optional built-in LoRa Network Server
  • Support AS923 no LBT, AU915, US915

      AP

      AP_spec





      Datasheet:         Conduit AP Gateway.pdf



      Upgrade FPGA:         Upgrade FPGA for AS923.pdf








      MTCAP-915-001A-AU - MultiConnect Conduit AP LoRa Gateway - Ethernet only - AEP FW
