MultiTech Conduit®
IP67 200 Series

IP67 200series Conduit for Outdoor with 4G AU CAT 1 LoRa®Deployments (MTCDTIP2 Series)

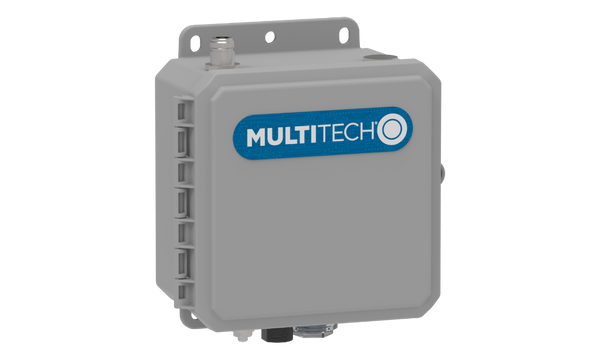

MultiTechConduit® IP67 200 Series Base Station is a ruggedized IoT gateway solution, specifically designed for outdoor LoRa® public or private network deployments. This highly scalable and certified IP67 solution is capable of resisting the harshest environmental factors including moisture, dust, wind, rain, snow and extreme heat, supporting LoRaWAN® applications in virtually any environment.

The enhanced Conduit IP67 solution can support thousands of LoRaWAN certified end nodes, including the MultiTech mDot™* and xDot®*. This flexible solution provides durable, low-power, wide area connectivity in support of M2M and IoT applications for both LoRa service providers and individual enterprises wanting to expand their LoRa network coverage.

Designed for easy deployment, the solution includes an IP67 enclosure, LoRa antenna to improve outdoor range and Ethernet or optional 4G-LTE backhaul. It can be deployed as part of an existing telecommunications tower, individual stand or wall mount.

We also Supply outdoor Pole mounting kit


Package content included:

1) MTCDTIP2 Ethernet Conduit Outdoor gateway

2) 3dBi Fibre Glass antenna - LoRa Radio Antenna 820-960MHz

3) Inbuilt GPS antenna.

4) Inbuit 4G antenna

LAP3- Cat1 solutions support 4G: B1(2100), B3(1800), B5(850), B8(900), B28(700) and 3G: B1(2100), B5(850), B8(900)




  • Greatly expands LoRa network coverage
  • External antenna increases LoRa connectivity to remote assets
  • Improved design enhancing thermal performance and easy external port access to SIM and USB connectors
  • Chassis material is PolyCarbonate which is far more better Outdoor life than all other ABS type material.


  • ISM band scanning for optimum LoRa performance
  • GNSS for location coordinate information
  • Listen Before Talk operating protocol
  • 27 dBm support
  • In built with DeviceHQ remote management and upgrade portal
  • Certified for Europe 868 MHz (EU ver), North American 915 MHz ISM bands, RCM-Australia 915MHz, 923MHz






    Datasheet:         IP67 series 200 Conduit Gateway.pdf




    MTCDTIP2-LAP3-B11UKP-L1M - MultiConnect Conduit2 IP67 LoRa 915/923MHz Gateway with 4G CAT1 & Ethernet- AEP FW
