Sku: R718CT2-AS923

AUD$433.56
Availability: Many In Stock
Sku: R718CT2-AS923
LoRawan
Netvox

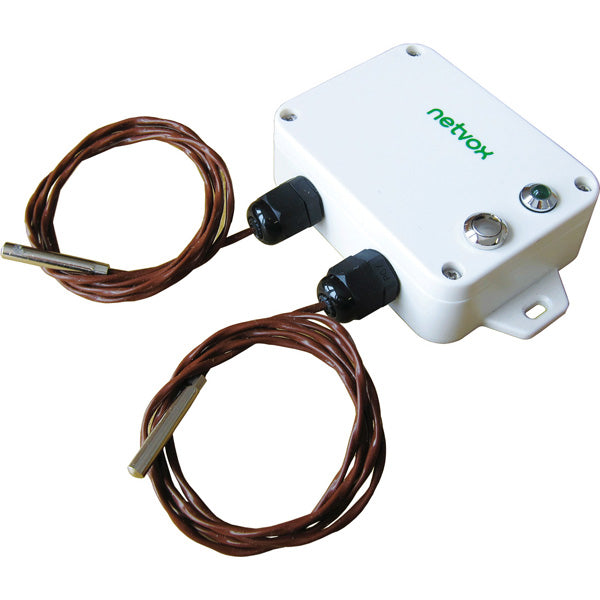

Netvox Wireless 2-Gang Thermocouple Sensor -High Temperature - R718CT2 is used to detect temperature of the object and medium which thermocouple is contacted. It can be connected to two thermocouples for testing. It uses SX1276 wireless communication module.

R718CK2 is connected with type T thermocouple, it supports good temperature accuracy operation. The collected data is displayed in the gateway.

Principle of Operation

The thermocouple is processed by the ADS1118 chip ADC for ADC sample conversion, and the ADS1118 communicates with the module via SPI.



Example Applications

  • Low to Med Temperature Measurement
  • Freezer, Fridge System Equipment



    Features of NETVOX Sensors

    • Wireless range of 10 km *
    • LoRaWANTM Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved interference immunity
    • Improved power management for longer battery life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
    • Battery Life* :
    5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
    • Over-the-air updates (future)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X series carry magnets which can be attached to ferromagnetic materials and objects
    *Actual range may vary depending on environment.
    *Battery life is determined by sensor reporting frequency and other variables



    Technical Specifications



    Input Power 2 x 3.6V ER14505 AA lithium batteries
    Sleeping Mode 36uA
    Wake up Mode 6.3mA @ 3.3V
    Low Voltage Threshold 3.2V
    Tx Current 120mA/3.0V
    Rx Current 11mA @3.0V
    Battery Life

    5 years

    (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF

    = 10)



    Frequency

    Tx Power 19dBm±1dBm
    Rx Sensitivity -136dBm (LoRa,Spreading Factor=12,Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
    Antenna Type Build-in antenna
    Communication Range Build-in antenna
    Data Transfer Rate 0.3kbps~50kbps
    Spread Technique   LoRa/FSK
    Available Frequency   EU863-870,US902-928,AU915-928, KR920-923,AS923,CN470-510 Configured before shipment



    Physical

    Dimension

    L:112mm*W:88.19mm*H:32mm

    Thermocouple Wire Length: 1 Meter

    Weight

    141g

    Operating Temperature

    -20℃ ~ 55℃

    Environment Humidity Range

    <90% RH (No condensation)

    Storage Temperature

    -40℃ ~ 85℃

    Temperature Measurement Range

    Type T thermocouple: -40~125℃

    Temperature Measurement Accuracy

    +-0.5℃

    Humidity Measurement Range

    10%RH - 90%RH

    Humidity Measurement Accuracy

    ±2%RH @25°C



    Datasheet:

    R718CT2.pdf

    User manual:

    R718CT2_UG.pdf

    Battery Calculator:

    Netvox Battery Calculator

    Netvox LoRa Command Resolver:

    LoRa Command Resolver
