Sku: R718G-AS923

AUD$133.00
Availability: Many In Stock
Sku: R718G-AS923
LoRawan
Netvox

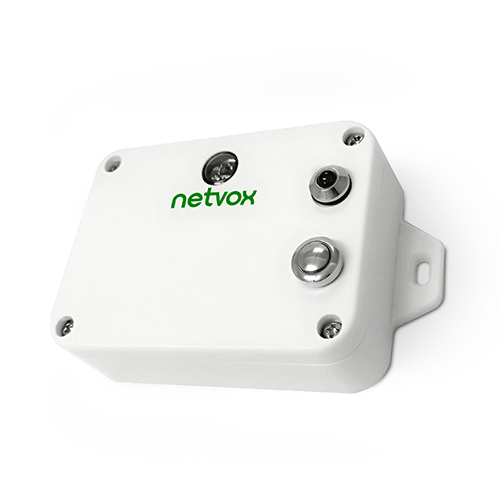

Netvox Wireless Light Sensor - R718G has a built-in light sensor that can be used for ambient light intensity detection. It uses the SX1276 wireless communication module. The R718G detects the ambient light intensity value and adds it to the gateway. The collected data is displayed in other devices



Example Applications

  • Illuminance detection
  • Others



    Features of NETVOX Sensors

    • Wireless range of 10 km *
    • LoRaWANTM Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved interference immunity
    • Improved power management for longer battery life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
    • Battery Life* :
    5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
    • Over-the-air updates (future)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X series carry magnets which can be attached to ferromagnetic materials and objects
    *Actual range may vary depending on environment.
    *Battery life is determined by sensor reporting frequency and other variables



    Technical Specifications



    Input Power 2 x 3.6V ER14505 AA lithium batteries
    Sleeping Mode 18uA
    Wake up Mode 6.3mA @ 3.3V
    Low Voltage Threshold 3.2V
    Tx Current 120mA/3.0V
    Rx Current 11mA @3.0V
    Battery Life

    5 years

    (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF

    = 10)



    Light Sensor

    Supply Voltage Range

    2.3VDC-3.3VDC

    Light Sensor Model

    TSL45315

    Illuminance Range

    3LUX-220KLUX

    Communication Method

    I2C communication



    Frequency

    Tx Power 19dBm±1dBm
    Rx Sensitivity -136dBm (LoRa,Spreading Factor=12,Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
    Antenna Type Build-in antenna
    Communication Range Build-in antenna
    Data Transfer Rate 0.3kbps~50kbps
    Spread Technique   LoRa/FSK
    Available Frequency   EU863-870,US902-928,AU915-928, KR920-923,AS923,CN470-510 Configured before shipment



    Physical

    Dimension

    L:112mm*W:65mm*H:32mm

    Weight

    150g

    Operating Temperature

    -20℃ ~ 55℃

    Environment Humidity Range

    <90% RH (No condensation)

    Storage Temperature

    -40℃ ~ 85℃

    Datasheet:

    R718G.pdf

    User manual:

    R718G_UG.pdf

    Battery Calculator:

    Netvox Battery Calculator

    Netvox LoRa Command Resolver:

    LoRa Command Resolver
