Sku: RB11E-AS923

AUD$123.06
Availability: Many In Stock
Sku: RB11E-AS923
LoRawan
Netvox

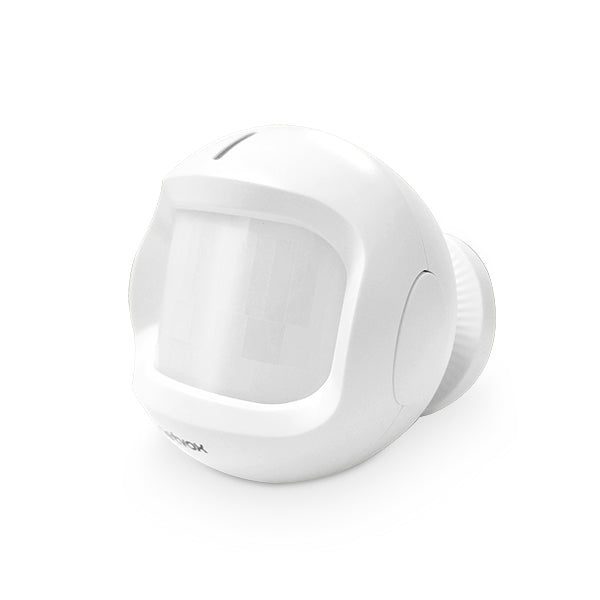

NETVOX RB11E is a long distance wireless infrared device based on the LoRaWAN protocol (Class A). RB11E combines infrared detection, temperature, and illumination sensors. During infrared real-time detection, if a people or other organism which is active in the monitoring area, RB11E will detect the infrared signal and report status information to the gateway. Users can execute different instructions or scenes according to the different status configuration. RB11E also supports temperature, lighting report.



Principle of Operation

If someone or animal is moving in the monitoring area, RB11E will detect the infrared signal and the red indicator will flash once. In the mean time, it reports occupied status (at the same time, other sensor status value are also reported). RB11E is able to read temperature and illumination over the LoRaWAN
network, mainly used to detect the temperature and illumination of the indoor environment, which through the wireless network communication module to collect the data sent to other devices displayed.



Example Applications

  • Area access monitoring
  • Detect when people enter a room
  • Building automation
  • Condition monitoring
  • Predictive maintenance
  • Security, healthcare and many more use cases.



    Features of NETVOX Sensors

    • Wireless range of 10 km *
    • LoRaWANTM Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved interference immunity
    • Improved power management for longer battery life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
    • Battery Life* :
    5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
    • Over-the-air updates (future)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
    • R718X series carry magnets which can be attached to ferromagnetic materials and objects
    *Actual range may vary depending on environment.
    *Battery life is determined by sensor reporting frequency and other variables



    Technical Specifications



    Input Power 2 x 3.6V ER14505 AA lithium batteries
    Operation voltage 3-3.6V
    Standby Current 110uA
    Battery Measurement
    Accuracy
    ±0.1V
    Tx Current 120mA/3.0V
    Rx Current 11mA @3.0V
    Battery Life

    5 years

    (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF

    = 10)



    Frequency

    Tx Power 19dBm±1dBm
    Rx Sensitivity -136dBm (LoRa,Spreading Factor=12,Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
    Antenna Type Build-in antenna
    Communication Range Build-in antenna
    Data Transfer Rate 0.3kbps~50kbps
    Spread Technique   LoRa/FSK
    Available Frequency   EU863-870,US902-928,AU915-928, KR920-923,AS923,CN470-510 Configured before shipment



    Physical

    Dimension

    L:78mm*W:78.8mm*H:82.2mm

    Weight

    125.8g

    Operating Temperature

    -20℃ ~ 55℃

    Environment Humidity Range

    <90% RH (No condensation)

    Storage Temperature

    -40℃ ~ 85℃

    Built in Devices Tamper switch, light sensor, temperature sensor



     Sensor Range

    Mounting Height

    2 to 2.2 meters above ground level

    Mounting Angle

    Tilt 15° downward

    Sensing Angle

    Horizontal 110°, vertical 60°

    Sensing Distance

    2 meters to 12 meters

    Object Moving Speed to Send Alarm

    ≥0.2 m(M)/s(s)

    Temperature Measurement Range -20°C ~ 55°C
    Temperature Measurement Accuracy ±2℃
    Light Sensor Measurement Range 0-1100LUX
    Light Sensor Measurement Accuracy ±15%
    Battery Measurement Accuracy ±0.1V

    Datasheet:

    RB11E.pdf

    User manual:

    RB11E_UG.pdf

    Battery Calculator:

    Netvox Battery Calculator

    Netvox LoRa Command Resolver:

    LoRa Command Resolver
