GPS Receiver
Lococsys
Tags / / /

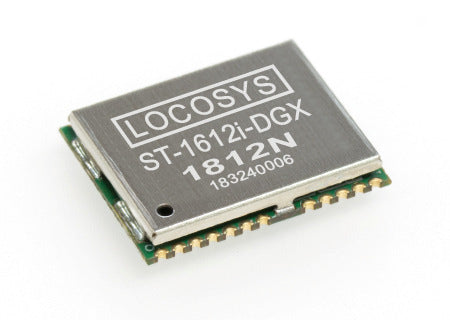

ST-1612i-DGX Dead Reckoning (DR) module is the perfect solution for automotive application. The ST-1612i-DGX is embedded 3D accelerometer, 3D gyroscope Micro-Electro-Mechanical Systems (MEMS) sensor, equipped with DR software, and powered by STMicroelectronics Teseo III. With adverse GNSS conditions in urban canyons, tunnels, or parking garages where DR boosts the accuracy, and the software fills the gaps. It supports three dimensional DR. This module can simultaneously acquire and track multiple satellite constellations that include GPS, GLONASS, GALILEO and QZSS. It features high
sensitivity, low power and ultra small form factor, and provide user the superior performance.


ST-1612i-DGX modules use GNSS chips qualified according to AEC-Q100 and manufactured in IATF 16949 certified sites.

Dead Reckoning Technology

Currently, vehicles are usually positioned using the Global Positioning System (GPS/GNSS)
However, in practical applications, GNSS satellite signals are not completely reliable under high buildings, overpasses, basement parking lots, tunnels, dense trees and other sheltered environment which can reduce the positioning accuracy. Therefore, if you want to improve the accuracy of navigation, Dead Reckoning navigation becomes necessary.

Dead Reckoning Combining with GNSS

The perfect combination of Dead Reckoning and GNSS is a perfect match for automotive navigation. Combining with GNSS signal, gyro steering information and CAN-Bus speed / pulse estimation, seamless real-time accurate positioning is achieved.

Furthermore, the application of Dead Reckoning technology by LOCOSYS is good news to the car owners. Because even in the process of driving when GNSS signal is lost, they can accurately navigate and locate.





Features


  • STMicroelectronics Teseo III high sensitivity solution
  • AEC-Q100 qualified for automotive grade
  • Support GPS, GLONASS, GALILEO and QZSS
  • Capable of SBAS (WAAS, EGNOS, MSAS)
  • Fast TTFF at low signal level
  • Built-in Dead Reckoning (DR) software
  • Built-in MEMS sensor (3-axis Gyroscope and 3-axis Accelerometer)
  • Support Odometer (wheel-tick pulse) input
  • Support Forward / Reverse Direction (FWD) input
  • Support sensors data feed through the UART port
  • Support SAE J2945/1 On-board system requirement for V2V safety communication
  • IATF 16949 quality control
  • Support CAN Bus ( ISO 15765-4 )
  • Small form factor 16 x 12.2 x 2.3 mm
  • SMD type, RoHS compliant




    MEMS Sensor
    The ST-1612i-DGX receiver support Dead Reckoning (DR) function, it composed by a 3-axis Gyroscope and 3-axis Accelerometer. To provide optimal solution it needs to calibrate sensor parameters. The sensor parameters are initialized to default values allowing system to start up when no other better information is available, if system is started for the first time in an unknown vehicle gyroscope
    dedicated maneuvers are required and algorithms able to estimate these parameters.


    Sensor Data Input
    The receiver needs two more sensor input, odometer and forward/reverse direction signal.


    There are three methods to feed datum to receiver as below descriptions.


    (1) Feed through vehicle Odometer (wheel-tick pulse) input.
    (2) Feed through the UART port; please contact LOCOSYS for more details.
    (3) Feed through CAN Bus (ISO 15765-4).



    Testing Example:

    LOCOSYS Dead Reckoning Tracker



    The place is the underground garage.



    There has the seven level underground garage.





    Datasheet:   ST-1612i-DGX.pdf
