Sku: RI.02.01.3000W
AUD$110.00
Availability:
49 In Stock
Sku: RI.02.01.3000W
RF Cable & Antenna
Taoglas

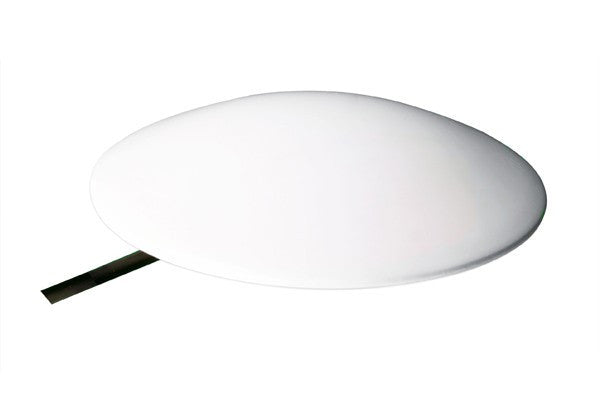

RI.02.01.3000W is the Robust Low profile designed Antenna from Taoglas which is highly suitable to mounting on the Road as the antenna house in a IK 10 enclosure with IP67 rating.
| Frequency (MHz) | 902-928MHz (offical) , we also tested 4G frequency |
|---|---|
| Polarization | Linear |
| VSWR | ≤ 1.5 |
| Peak Gain (dBi) | 6.2dbi@900MHz |
| Max Input power (W) | 10W |
| Input Impedance (Ω) | 50 |
| Housing and IP rate |
IK 10 / IP67 |
| Antenna size (mm) | Low Profile - Diameter 101.4mm*Height 17.6 mm |
| Cable length | 1.5M WY-100 cable SMB(M) Jack + 1.5M WY-100 SMB(F) to SMA(M)ST |
| Connector | SMB and SMA |
| Mounting | Adhesive mount |
| Storage Temperature | -40C to+85C |
| Operating Temperature | -40C to+85C |
VSWR testing
900MHz testing
4G frequency testing
Datasheet: RI.02.01.3000W.pdf
Application note: RI.02.01.3000W app note.pdf
Also Purchased
ANT-LTE-02-06 - LTE 4G 698-960/1710-2170/2500-2700 antenna 3-5dBi
Frequency (MHz) 698-960/1710-2170/2500-2700 Bandwidth (MHz) 70/180 VSWR ≤ 2 Gain (dBi) 3dBi@700MHz; 5dBi@1710-2700MHz Max Input power (W) 50 Input Impedance (Ω) 50 Polarization Vertical Antenna Length (mm) 171...
AUD$7.67
ANT-LTE-09 - LTE 4G 698-960/1710-2170/2500-2700 antenna 2.15dBi
Frequency (MHz) 698-960/1710-2170/2500-2700 Bandwidth (MHz) 90/180 VSWR ≤ 1.5 Gain (dBi) 2.15dBi@700MHz; 2.15dBi@1710-2700MHz Max Input power (W) 50 Input Impedance (Ω) 50 Polarization Vertical Antenna size (mm) Φ80(Base)×13(Height)...
AUD$12.99
ANT-LTE-06 - LTE 4G 698-960/1710-2170/2500-2700 antenna 5dBi
Frequency (MHz) 698-960/1710-2170/2500-2700 Bandwidth (MHz) 90/180 VSWR ≤ 1.5 Gain (dBi) 3dBi@700MHz; 5dBi@1710-2700MHz Max Input power (W) 60 Input Impedance (Ω) 50 Polarization Vertical Antenna size (mm) Φ45(Base)×290(Height)...
AUD$16.20
ANT-4G-12 - LTE 4G 698-960/1710-2170/2500-2700 antenna 3dBi
Frequency (MHz) 698-960/1710-2170/2500-2700 Bandwidth (MHz) 90/180 VSWR ≤ 1.5 Gain (dBi) 3dBi@700MHz; 3dBi@1710-2700MHz Max Input power (W) 50 Input Impedance (Ω) 50 Polarization Vertical Antenna size (mm) Φ30(Base)×90(Height)...
AUD$8.15
A10340 - Antenova Calvus 3G band chip antenna
Calvus uses a ground plane in order to radiate efficiently, but the ground plane must not be present underneath the antenna itself. The antenna uses a matching circuit to achieve...
AUD$7.58

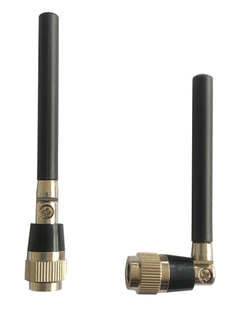

ANT-LTE-01-05 - 4G/LTE frequency stubby metal antenna 4.6dBi
