LoRawan
Tektelic

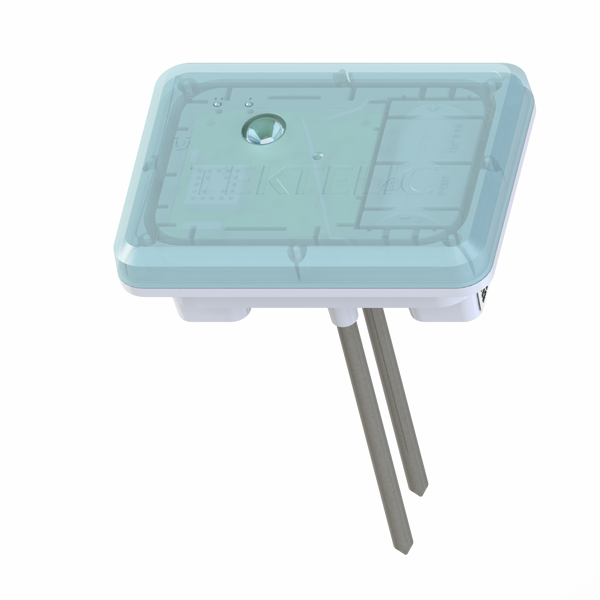

The Tektelic Agriculture Sensor is is the ideal solution to streamline and simplify the
collection of key soil and environmental metrics for crops, residential and
commercial lawns and gardens and golf courses . The device provides a straightforward and easy to deploy solution for soil moisture and temperature, air
temperature and humidity, and outdoor light monitoring. Enjoy increased crop
yields and decreased operating expenses with the deployment of this versatile
device.


The Agriculture Sensor utilizes a ruggedized IP-67 enclosure for use in the most
challenging outdoor environmental conditions. An integrated C-Cell LTC battery
provides substantial battery life up to 10 years with a battery status indicator for
easy reference. The Agriculture and Sensor is seamlessly integrated in TEKTELIC’s
End-to-End IoT solution.


Multiple variants for diverse mounting options are available including direct soil
surface mount or elevated mounting on a post, fence or vine. Soil Moisture probes are sold separately for the elevated mounting variant.

Example Applications

  • Soil moisture content detection
  • Soil temperature detection
  • Golf club grass monitoring.
  • Other



    EASY Installation

    Features of Sensors

    • Soil measurements: moisture and temperature
    • Soil probes: 100mm probes built in
    • Environmental measurements: ambient temperature, humidity and light level
    • Accelerometer: senses impacts, or re-positioning
    • LoRaWAN: Class A
    • Operating temperature: -40°C‒85°C
    • Size: 120 mm x 90 mm x 58 mm (H=161mm with probes)
    • Weight: 224g
    • Battery: C-cell Lithium Thionyl Chloride
    • Battery lifetime: At least 10 years transmitting at maximum power every 15 minutes at room temperature



    Technical Specifications

    Physical

    Operational Temperature

    -40°C to +65°C

    Degree of Protection

    IP67

    Size

    120 x 93 x 58 mm (Sensor)

    0.3m - 1m (Probe for Elevated version)

    Battery (up to 10 years)

    C Cell LTC



    LoRa Parameters

    RF Power

    Up to 23 dBm (200mW)

    RF Sensitivity

    -137dBm (SF12, 125kHz)

    ISM Band

    All Global Bands

    Antenna

    Internal or Optional External

    LoRa Device Class

    Class A (B)



    Regulatory Compliance

    Safety

    UL 60950-1 (US/C), IEC 60950-1 (CE)

    Environmental

    ETSI EN 300 019-2-1, 300 019-2-2

    ETSI EN 300 019-2-3, 300 019-2-4

    Regulatory

    FCC 15.247 RSS-247

    FCC 15.209 RSS-Gen



    Datasheet:

    Tektelic Agriculture sensor.pdf

    User manual:

    Techincal Reference manual.pdf

    User Guide:

    User guide.pdf

    LoRa Command Resolver:

    LoRa payload decorder
