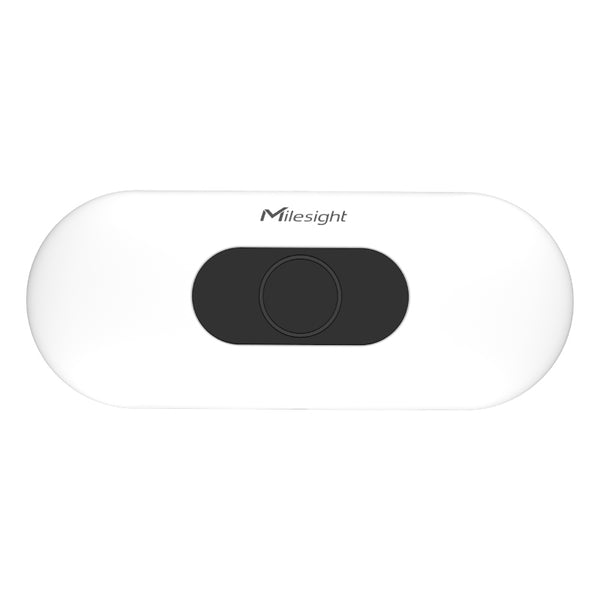

VS133 LoRaWan AI ToF People
Counting Sensor


VS133 is a sensor that uses second-generation ToF technology to accurately
count people. This technology provides more precise depth maps and longer
detection distances while maintaining an excellent privacy protection. The
advanced ToF technology combined with an AI algorithm enables the sensor
to handle complex scenes and distinguish non-human objects with up to
99.8% accuracy.

The VS133 sensor can be used in conjunction with the
Milesight LoRaWAN® gateways and the Milesight IoT Cloud, as well as with
the PoE version VS133-P, which allows for easy Ethernet connectivity and
different data transmission options. With easy installation, the VS133 and
VS133-P sensors are ideal for entrances or corridors in retail stores, malls,
offices, subways, and other locations.



Features

  • Up to 99.8% accuracy combining the 2nd generation ToF technology and AI algorithm
  • Allow to collect people counting data by differentiating between children and adults and detecting staffs via identification features for clearer people analysis
  • Wider field angle to obtain longer-distance depth maps and cover a larger area
  • Working well even in low-light or completely dark environments with great lighting adaptability
  • Free from privacy concerns without image capturing
  • Smart U-turn counting to filter redundant counting of people wandering in the area
  • High compatibility of data transmission either from LoRaWAN® or Ethernet port (HTTP/MQTT/CGI)
  • Various serial ports are equipped in the VS133 PoE version
  • 4GB flash storage to store a million counting data locally and securely
  • Easy configuration via Wi-Fi or Ethernet port for web GUI configuration
  • Function well with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud or Milesight DeviceHub

Applications

  • Offices and meeting rooms occupancy monitoring
  • Customer flow analysis on stores and shopping malls
  • Passenger flow analysis on buses or subways

Specifications

Model                                               VS133

Wireless Transmission

Technology

LoRaWAN®

Frequency

CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

Tx Power

16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)

Sensitivity

-137dBm @300bps

 Work Mode

OTAA/ABP Class C

Sensors

People Counting

ToF FoV

98 ° Horizontal, 80 ° Vertical

ToF Light Beam

940nm (Invisible)

Measuring Accuracy

< 3.5cm

Detection Range

0.5-3.5 meters

Installation Height

≤ 3.5m

Recognition Rate

Up to 99.8%


Advanced Feature

Customized Multiple Counting Lines, Filter U-turns, Bi-directional Counting, Children/Adults Differentiation, Staff Detection

Physical Characteristics

 Power Supply

12VDC / 2A

Power consumption
Typical 7.8 W, max 22.2 W

Operating Temperature

0°C - 50°C

Relative Humidity

0% - 95% (non-condensing)

Ingress Protection

IP40

Dimension

180 × 26 × 72 mm

Installation

Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (with
Optional Multifunctional Bracket)



Datasheet:  VS133.pdf

User manual: VS133 user manual
