Sku: Oyster-LoRaWan-915

AUD$224.84
Availability: Many In Stock
Sku: Oyster-LoRaWan-915
LoRawan
Digital Matter

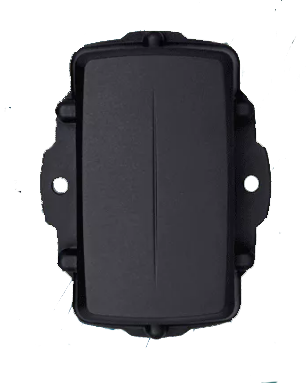

The Oyster 3 is a rugged, waterproof, GPS tracking device designed for tracking non-powered, exposed assets where super-long battery life is required on LoRaWAN networks.

FEATURES

  • Up to 10 years once daily location
  • Up to 5 years Movement-Based location updates
  • Hourly location updates – 2 years
  • IP67 water and dust proof
  • Rugged, robust and low profile
  • No install required, simply “place ‘n trace”
  • Off-the-shelf, user replaceable AA batteries
  • Switch from “locate” to “track” over-the-air
  • Battery status and low battery alert
  • Integrated accelerometer
  • Unauthorised movement alert



MECHANICAL FEATURES



Low-profile IP67 rugged housing

The IP67 rated housing is made of sturdy ABS/Polycarbonate plastic to survive bumps and knocks and is UV stabilised to survive many years in the sun and weather. Its low-profile makes it easier to mount in the corrugation on containers or to conceal on the underside of a trailer.

Operating temperature

-30°C to +60°C

For operation in extreme temperatures the device must be fitted with 1.5V Lithium batteries

Dimensions (mm)

L 108 x W 86 x H 30

Weight

180 grams



CONNECTIVITY

Network

LoRaWAN

Configuration

Setup by USB Cable and OTA

LoRaWAN

Regions

All 868MHz, and 900MHz regions supported






SPECIFICATIONS

Sleep Current

<10µA (micro-amps)



Batteries

3 x AA Size 1.5V batteries – alkaline or lithium. Alkaline – industrial type recommended.

1.5V Lithium – longer life and wider temperature

range

Recovery Mode

Switch from Daily Locate to Live Tracking over- the-air



3D Accelerometer

The 3 axis accelerometer allows the Oyster to

“sleep” in an ultra-low power state yet still wake up when movement occurs



Adaptive Tracking

Adaptive-Tracking technology enables the accelerometer and GPS data to be used intelligently to work out if it is moving and to send frequent updates, as well as to scale the update rate down to once per day if the asset is stationary in order to preserve battery life

Autonomous Aiding Data

Predicts satellite locations Reduces the time to first fix

Improves performance in "urban canyons"



GPS TRACKING

GPS Module

High sensitivity assisted GPS receiver, 72 channels

GPS/GLONASS

Setup by USB Cable and OTA

Antenna with LNA



Boosted by low-noise amplifier (LNA) allows operation in "urban canyons" and container stacks



Datasheet: Oyster 3 LoRaWan product brief.pdf

Intergation guide: Oyster 3 LoRaWan Integration guide.pdf

Oyster configuration program: DM Oyster LoRaWan setup.exe





Oyster 3 LoRaWan GPS sensor 915MHz, suitable for AU915/AS923/NA915
