Sku: XP1001000-05R
AUD$82.00
Availability:
Many In Stock
Sku: XP1001000-05R
Ethernet
Lantronix

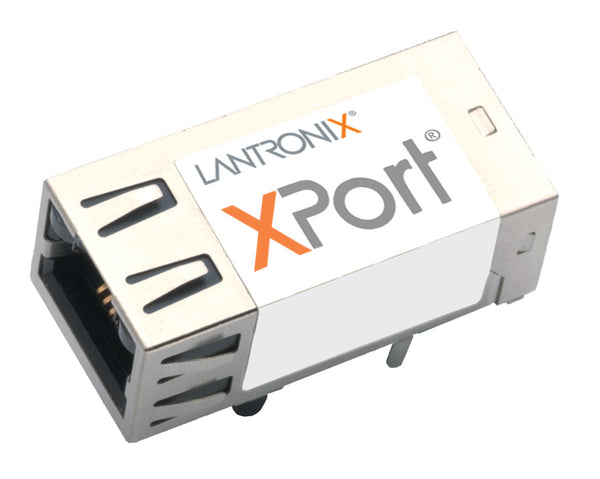

XPort®
Embedded Ethernet Device Server
Minimal engineering effort required to web-enable virtually any electronic device
- Remote command and control of edge devices
- Real-time edge device status via e-mail alerts
- 256-bit AES encryption for secure communications
- EMC/EMI-compliant; RoHS-compliant
- Everything you need — all in a single RJ45 package
Documentation
-
- XPort - Product Brief ( PDF)
- XPort - Data Sheet ( PDF)
- XPort-485 - Data Sheet ( PDF)
- XPort - User Guide ( PDF)
- XPort - Integration Guide ( PDF)
- XPort - Quick Start Guide ( PDF)
- XPort / XPort-AR / WiPort - Eval Kit Contents ( PDF)
- XPort - Universal Demo Board User Guide ( PDF)
- XPort - Universal Demo Board Quick Start Guide ( PDF)
Firmware / Utilities
-
- XPort-01 Firmware - (FAQ 1004)
- XPort-03 Firmware - (FAQ 1597)
- XPort-04 Firmware - (FAQ 1600)
- XPort-485 Firmware - (FAQ 1598)
- XPort-IAP Firmware - (FAQ 1599)
- DeviceInstaller - (FAQ 644)
Features & Specifications
| Serial Interface | |
| Interface | CMOS (Asynchronous, 5V Tolerant) |
| Data Rates | 300 bps to 921,600 bps |
| Characters | 7 or 8 data bits |
| Parity | odd, even, none |
| Stop Bits | 1 or 2 |
| Control Signals | DTR/DCD, CTS, RTS |
| Flow Control | XON/XOFF, RTS/CTS |
| Programmable I/O | 3 PIO pins (software selectable) |
| Network Interface | |
| Interface | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) |
| Connector | RJ45 |
| Protocols | TCP/IP, UDP/IP, ARP, ICMP, SNMP, TFTP, Telnet, DHCP, BOOTP, HTTP, and AutoIP |
| Indicators (LED) | |
|
|
| Management | |
|
|
| Security | |
|
|
| Internal Web Server | |
| Storage Capacity | 384KB for web pages |
| Architecture | |
| CPU | Based on the DSTni-EX enhanced 16-bit, 48MHz or 88MHz, x86 architecture |
| Memory | 256KB SRAM and 512KB flash |
| Firmware | Upgradeable via TFTP and serially |
| Power | |
| Input Voltage | 3.3 VDC |
| Environmental | |
| Extended Temp | -40° to 85°C (-40° to 185°F) |
| Commercial Temp | 0° to 70°C (32° to 158°F) |
| Storage | -40° to 85°C (-40° to 185°F) |
| Packaging | |
| Dimensions | 33.9 x 16.25 x 13.5mm (1.33 x 0.64 x 0.53 in) |
| Weight | 9.6 g (0.34 oz) |
| Included Software | |
|
|
