Sku: R311G-AS923
AUD$102.60
Availability:
Many In Stock
Sku: R311G-AS923
LoRawan
Netvox

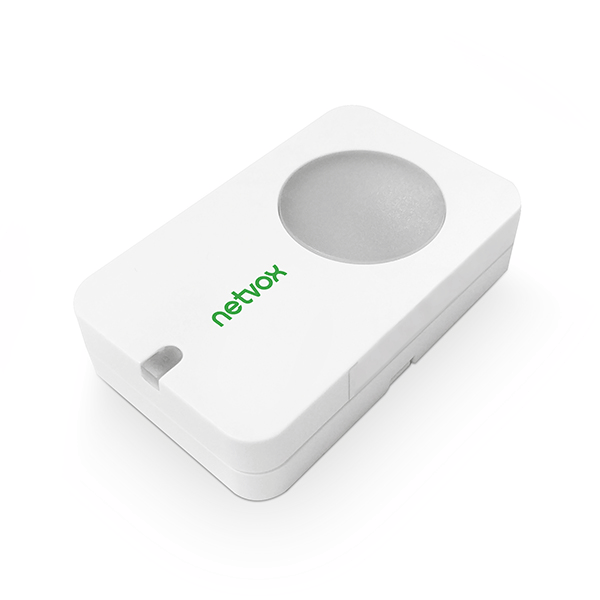

NETVOX Wireless Light Sensor R311G, the built-in photosensitive sensor, can be used for external ambient light intensity detection. Together with other devices to perform wireless dimming functions, and wireless communication meets LoRa protocol standards. R311G is the environmental illuminance automatic detector and the reporter which can send out the environmental illumination report and is a
low-power, long range, wireless sensor that can accurately detect environmental illuminance indoor.
Principle of Operation
R311G is able to read environmental illuminance over the LoRaWAN network, mainly used to detect the environmental illuminance indoor , which through the wireless network communication module to collect the data sent to the data platform displayed.
Example Applications
The device is universal an can be used for many applications. Ideally suited for a wide range of applications such as building automation, condition monitoring, predictive maintenance, security, healthcare and many more use cases. For example:
Home / Schools / Classroom / Reading room / Laboratory
Offices PC room / Working / Meeting room / Canteen / Restroom Factories Production hall / Laboratory, inspection work / Storage Hospitals / Bedroom / Entrance area / Restaurant / Bars / Staircases
Features of NETVOX Sensors
- LoRaWANTM Class A compatible
- Frequency Hopping Spread Spectrum (FHSS)
- Improved interference immunity
- Improved power management for longer battery life
- Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
- Battery Life*:
- Please refer to web: http://www.netvox.com.tw/electric/electric_calc.html
- At this website, users can find battery life time for varier models at different
- Over-the-air updates (future)
- Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
- Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
* Actual range may vary depending on environment.
* Battery life is determined by sensor reporting frequency and other variables
Technical Specifications
| Input Power | 2pcs 3.0V CR2450 button battery |
|---|---|
| Working Voltage | DC 2.4V～3V |
| Standby Current | 12uA/3.0V |
| Tx Current | 120mA/3.0V |
| Rx Current | 11mA @3.0V |
| Brightness Detecting Range | 1～3000LUX |
| Voltage Threshold | 2.4V |
| Battery Voltage measurement accuracy | ±0.1V |
Frequency
| Tx Power | 19dBm±1dBm |
|---|---|
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Build-in antenna |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment |
Physical
|
Main Body Dimension |
57mm x 35mm x 15mm |
|
Weight |
32.3g |
|
Operating Temperature |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
Datasheet:
R311G.pdf
User manual:
R311G_UG.pdf
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
