Sku: R311W-AS923

AUD$105.74
Availability: Many In Stock
Sku: R311W-AS923
LoRawan
Netvox

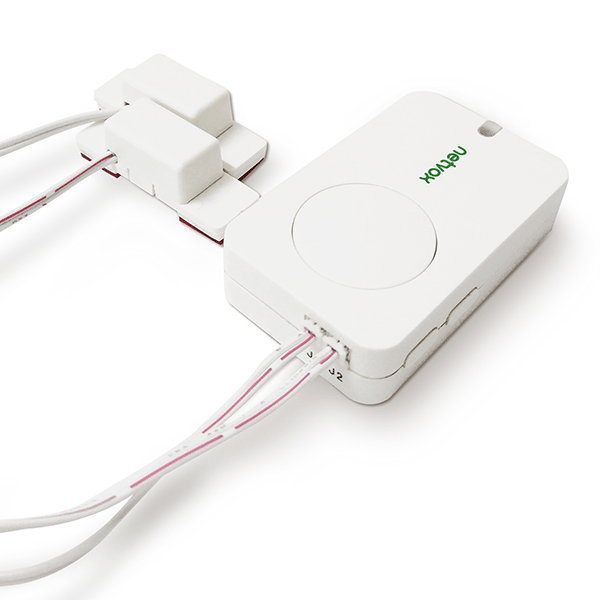

NETVOX Wireless Water Sensor R311W is a LoRaWAN device compatible with LoRaWAN protocol (ClassA). When the R311W sensor detects the leak, it will send an alarm message to the gateway. When the sensor detects no leaks, it will send a message that shows no leak to the gateway.



Principle of Operation

NETVOX Wireless Water Sensor is available to detect water leak at data center, engine room, boat blige...etc. The radio transmission is based on the new disruptive LoRa long range technology. R311W will transmit information and data to the server from application fields based on the desired behavior. The low battery consumption device is long lasting which ensures optimum usage.

Thanks to small sizes, they can be installed everywhere. They are wireless so they take up minimal floor space.The transmission is direct to a central center that can be programmed to trigger an alarm system.Thanks to innovation, these wireless sensors are more reliable and precise and they can detect several applications.



Example Applications

  • Data center and server room water monitoring
  • Document retention center monitoring
  • Basement water monitoring
  • Plumbing leak detection
  • Boat bilge monitoring
  • Storage monitoring
  • And many ..



Features of NETVOX Sensors

    • LoRaWANTM Class A compatible
    • Frequency Hopping Spread Spectrum (FHSS)
    • Improved interference immunity
    • Improved power management for longer battery life
    • Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
    • Battery Life*:
    • At this website, users can find battery life time for varier models at different
    • Over-the-air updates (future)
    • Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
    • Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne

* Actual range may vary depending on environment.

* Battery life is determined by sensor reporting frequency and other variables



Technical Specifications

Input Power 2pcs 3.0V CR2450 button battery
Working Voltage DC 2.4V~3V
Standby Current 12uA/3.0V
Tx Current 120mA/3.0V
Rx Current 11mA @3.0V
Voltage Threshold 2.4V
Battery Voltage measurement accuracy   ±0.1V



Frequency

Tx Power 19dBm±1dBm
Rx Sensitivity -136dBm (LoRa,Spreading Factor=12,Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range Build-in antenna
Data Transfer Rate 0.3kbps~50kbps
Spread Technique   LoRa/FSK
Available Frequency   EU863-870,US902-928,AU915-928, KR920-923,AS923,CN470-510 Configured before shipment



Physical

Main Body Dimension

57mm x 35mm x 15mm

Sensor Dimension

43mm x 13mm x 12mm

Weight

48.9g

Operating Temperature

-20℃ ~ 55℃

Environment Humidity Range

<90% RH (No condensation)

Storage Temperature

-40℃ ~ 85℃



Datasheet:

R311W.pdf

User manual:

R311W_UG.pdf

Battery Calculator:

Netvox Battery Calculator

Netvox LoRa Command Resolver:

LoRa Command Resolver
