Sku: R718MBA-AS923
AUD$171.76
Availability:
Many In Stock
Sku: R718MBA-AS923
LoRawan
Netvox

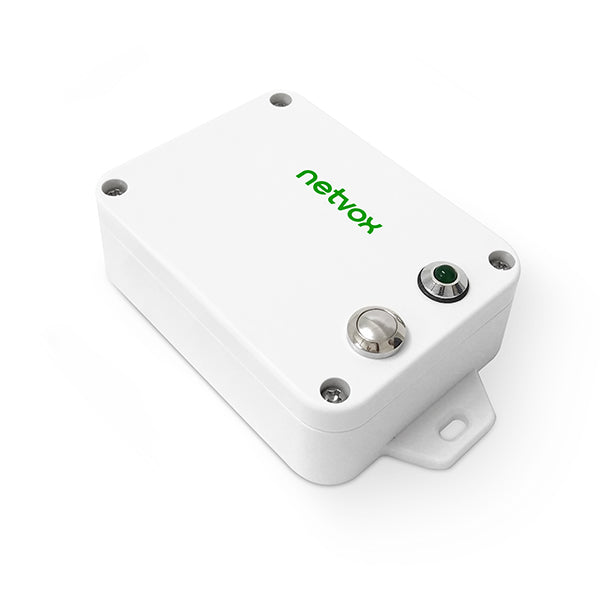

NETVOX Wireless Activity Detection Sensor R718MBA detects the sudden movement or vibration of the device and send an alarm signal to the gateway for
processing. It uses the SX1276 wireless communication module.
Example Applications
- Smart Home
- Industry and Commercial
- Objects to be detected movement or vibration
Features of NETVOX Sensors
• Wireless range of 10 km *
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Battery Life* :
5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*Actual range may vary depending on environment.
*Battery life is determined by sensor reporting frequency and other variables
Technical Specifications
| Input Power | 2 x 3.6V ER14505 AA lithium batteries |
|---|---|
| Sleeping Mode | 36uA |
| Wake up Mode | 6.3mA @ 3.3V |
| Low Voltage Threshold | 3.2V |
| Tx Current | 120mA/3.0V |
| Rx Current | 11mA @3.0V |
| Battery Life |
3.4 years (Conditions: ambient temperature 25 °C, 15 min heartbeats, txpower = 20dBm, LoRa spreading factor SF = 10) |
Frequency
| Tx Power | 19dBm±1dBm |
|---|---|
| Rx Sensitivity | -136dBm (LoRa，Spreading Factor=12，Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps) |
| Antenna Type | Build-in antenna |
| Communication Range | Build-in antenna |
| Data Transfer Rate | 0.3kbps～50kbps |
| Spread Technique | LoRa/FSK |
| Available Frequency | EU863-870，US902-928，AU915-928， KR920-923，AS923，CN470-510 Configured before shipment |
Physical
|
Dimension |
L:112mm*W:65mm*H:32mm Sensor cover size: D: 16mm*L: 34.5mm, |
|
Weight |
141g |
|
Operating Temperature |
-20℃ ～ 55℃ |
|
Environment Humidity Range |
<90% RH (No condensation) |
|
Storage Temperature |
-40℃ ～ 85℃ |
Datasheet:
R718MBA.pdf
User manual:
R718MBA_UG.pdf
Battery Calculator:
Netvox LoRa Command Resolver:
LoRa Command Resolver
