Sku: R718PA7-OD-DC12-AS923

AUD$673.58
Availability: Many In Stock
Sku: R718PA7-OD-DC12-AS923
LoRawan
Netvox

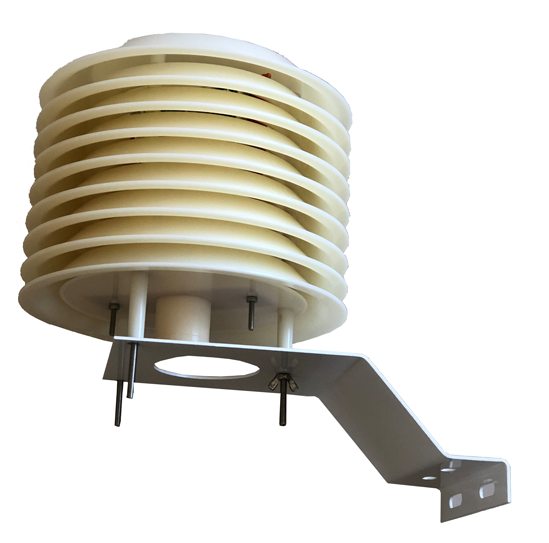

R718PA7-OD-DC12 is housing the R718PA7 inside a Radiation Shield, it provided an environment to avoid direct sunlight as well as prevent wetting the sensor during Rain and fog



NETVOX Wireless Sensor R718PA7 is a wireless communication device that detects the noise.

Example Applications

  • Noise level detection

Features of NETVOX Sensors

• Wireless range of 10 km *
• LoRaWANTM Class A compatible
• Frequency Hopping Spread Spectrum (FHSS)
• Improved interference immunity
• Improved power management for longer battery life
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• Battery Life* :
5 years (Conditions: ambient temperature 25 °C, 20 triggers/day, txpower = 20dBm, LoRa spreading factor SF = 10)
• Over-the-air updates (future)
• Third-Party online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email (optional)
• Available third-party platform: Actility/ThingPark, TTN, MyDevices/Cayenne
• R718X series carry magnets which can be attached to ferromagnetic materials and objects
*Actual range may vary depending on environment.
*Battery life is determined by sensor reporting frequency and other variables



Technical Specifications



Input Power DC 12V adapter power supply (AU plug for ANZ) and UK plug for Asia
Operating Current <70mA
Operating Temperature -20℃ ~ 60℃
Operating Humidity 15%-90% (No condensation)
Power Consumption (max) 0.4W
Noise Sensor Measurement Range, Frequency Response 30dB-130dB, 35Hz-20Khz
Resolution 0.1db



Frequency

Tx Power 19dBm±1dBm
Rx Sensitivity -136dBm (LoRa,Spreading Factor=12,Bit Rate=293bps ) -121dBm (FSK,Frequency deviation=5kHz, Bit Rate=1.2kbps)
Antenna Type Build-in antenna
Communication Range Build-in antenna
Data Transfer Rate 0.3kbps~50kbps
Spread Technique   LoRa/FSK
Available Frequency   EU863-870,US902-928,AU915-928, KR920-923,AS923,CN470-510 Configured before shipment



Physical

Radiation enclosure size

Diameter: 220mm Height: 220mm

U mount pole size: 50mm

Dimension

Main unit - L: 112 mm*W: 88.19 mm*H: 32 mm Noise Sensor - L: 110 mm*W: 85 mm*H: 44mm Noise Sensor Waterproof (white) - D: 19.5mm*L: 30.3mm - M12*1.5 (Screw Thread)

Weight

160g

Operating Temperature

-40℃ ~ 55℃

Environment Humidity Range

<90% RH (No condensation)

Storage Temperature

-40℃ ~ 85℃

Temperature Measurement Range

-40°C - 55°C





Datasheet:

R718PA.7pdf

User manual:

R718PA7_UG.pdf

Battery Calculator:

Netvox Battery Calculator

Netvox LoRa Command Resolver:

LoRa Command Resolver

R718PA7-OD-DC12 - Netvox LoRaWan Wireless Noise Sensor with Radiation Shield - DC12V
