Sku: SMTPBAS923

AUD$102.88
Availability: Many In Stock
Sku: SMTPBAS923
LoRawan
Tektelic

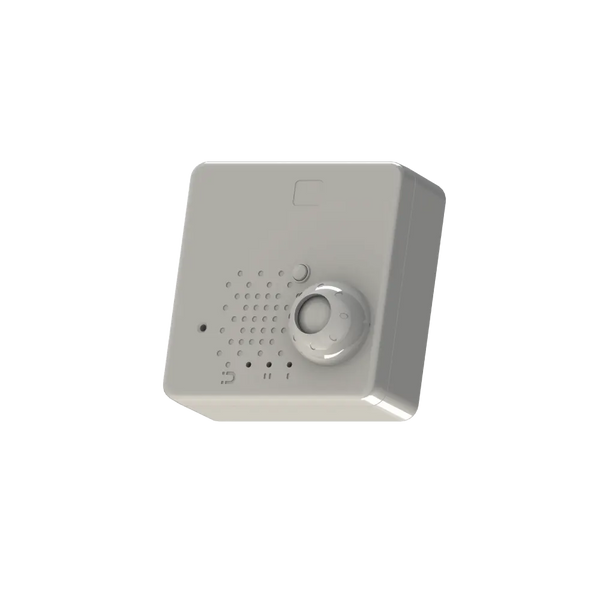

TEKTELIC VIVID integrates practical functionality into a very small form factor. The VIVID is an ideal solution for holistically monitoring the home and office environment. The device is capable of measuring and reporting temperature, humidity, light, movement, motion, shock, detecting leaks, open / closed doors and windows. It also supports battery status updates for easy maintenance

 Example Applications

  • Smart Home & Office
  • Indoor Environment Monitoring
  • Room Occupancy • Facility Management
  • Moisture/Leak Detection
  • Desk Occupancy
  • Point of Entry Security
  • HVAC Optimization

Features of Sensors

  • User Configurable Parameters and Thresholds
  • Designed for Optimal Battery Life
  • Multiple PIR Masking Options
  • Long Battery Life
  • Wall, Ceiling or Table Mount Configurations
  • Simple Deployment
  • Sleek and Unobstructed Design

 Applications:

  • Movement Detect (Doors, Windows, Drawers)
  • G-Force Measurement (Settable Trigger)
  • Motion Detection
  • On / Off External Contact
  • On / Off Internal Magnetic Switch
  • Pulse Reading (Water, Gas, other metering)
  • Light Detection (On / Off)
  • Temperature Measurement
  • Humidity Measurement
  • Moisture / Leak Detection

Technical Specifications

Physical

Operational Temperature

0°C to +60°C

Degree of Protection

IP30

Size

42 x 42 x 26 mm (Sensor)

42 x 42 x 27 mm (with bracket)

Battery

CR2477



LoRa Parameters

RF Power

Up to 23 dBm (200mW)

RF Sensitivity

-137dBm (SF12, 125kHz)

ISM Band

All Global Bands, AU915, AS923 (different part number)

Antenna

Internal

LoRa Device Class

Class A



Sensor Functions

Sensor Function

PIR Variant

Motion Detection (PIR)

 YES

On/Off Magnet switch

 YES

Moisture/Leak Detection



Accelerometer

 YES

G-Force Measurement

 YES

On/Off External Contact



Light Detection

 YES

Temperature

 YES

Humidity

 YES



PIR Detection Range (Wall Mount)

X Angle

70°

Y Angle

20°

Z Range

5 m





PIR Detection Range (Ceiling Mount)

X Angle

70°

Y Angle

84°

Height

3 m



Regulatory Compliance

Safety

UL 60950-1 (US/C), IEC 60950-1 (CE)

Environmental

ETSI EN 300 220

ETSI EN 301 489-1/-3

Regulatory

FCC 15.247 RSS-247

FCC 15.209 RSS-Gen



Datasheet:

Tektelic Smart Room sensor.pdf

User manual:

Techincal Smart room sensor Technical Reference manual.pdf

LoRa Command Resolver:

LoRa payload decorder
