Sku: ELE-POE-OD-35W
AUD$300.00
Availability:
Many In Stock
Sku: ELE-POE-OD-35W
Power Supply, Battery
MSTronic Co., Ltd

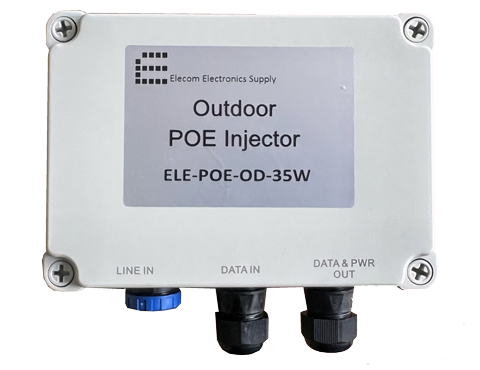

Outdoor 35W 56V AC/DC, 1G/5Gbase , 802.3at PoE Injector - with Australia AC cord.
|
Input Voltage |
120 / 230VAC |
|
Output Voltage |
56VDC 802.3at |
|
Max Load |
0.625A |
|
Power |
35W |
|
Min Load |
0.A |
|
Load reg.% |
5% |
|
Line Reg.% |
1% |
|
Ripple% |
1% |
|
Noise |
2% |
|
Operation temperature |
-40C to 70°C |
|
Dimensions |
175W x 75H x 175L mm |
|
AC cord |
Australia |
| IP Rate |
IP67 |
CONNECTOR
1) RJ45 connector x 2
Specification: IP rate: IP68
Flame rate: UL94-V0
Cable OD range: 3mm to 8 mm
External length: 40mm
2) Power connector x 1
Specification: IP rate: IP68
Flame rate: UL94-V0
Cable OD range: 6mm to 12 mm
External length: 70mm
Max wire size: less than 4 mm
Cable length: 1 Meter cable with AU plug, (customer can change it theirself)
PROTECTION
* Short Circuit Protection - output Short GND Terminal will not damage the Power Supply will Auto Recover when Load status going to normally.
* Over Voltage Protection : 59V ~ 63V
* Over Current Limits : 802.3at Limits(~ 0.71A) @100V ~ 240Vac
* Input with Fuse Protection
* EMC : Meet FCC Class B EN55032 Class B
Datasheet: ELE-POE-OD-35W.pdf
