Sku: DC500

AUD$173.33
Availability: Many In Stock
Sku: DC500
Dingtek

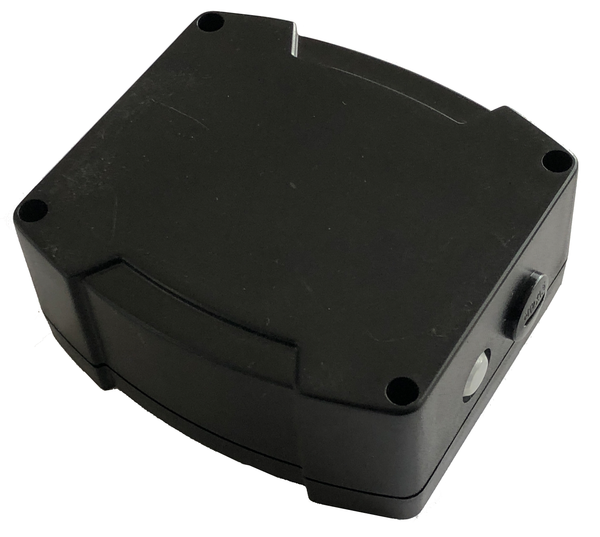

The DC500 PIR type LoraWan people counter is a cost effective people counter solutions which is suitable for using in outdoor and indoor gate as well as the sliding door, shopping centre hallway and disable toliet door ...etc

The sensor is designed to report in periodic mode like every 1 hour or 24 hours, and it will also to report when the sensor reached a certain number of count, like 500 count etc, so it could be used for estimate the number of people access the monitor area, so as to provide a instant information to the manager.

Through the built-in LoRaWAN module, the detector can pass status information to
the LoRaWAN gateway, network server, then the application server. Users can remotely monitor the manhole status, whether moved after installation or not. This
equipment can be widely used in smart city projects.

The IP65 waterproof level can meet stringent requirements for use and make it for use long life, it is optional for different frequency, such as 470Mhz (China), 868Mhz (Europe), 915Mhz(USA), 923Mhz (Australia,New Zealand).

Based on low-power algorithm, internal battery can work for more than 1 years, measured based on setting report schedule at 50 people count and 50 report per day, total 2500 people count


Feature:

  • Internal battery can work for more than 1 year
  • Low-power and wireless technology LoRaWAN
  • IP65 waterproof protection Level
  • Sensitivity can be adjusted via command
  • Set up number of counts threshold for reporting
  • Set up periodic report time

Applications:

  • Shopping centre Hallway access people counting.
  • Outdoor access gate people counting.
  • Disable toilet access people counting.
  • Sliding door access people counting.



Specifications:






Overview
Dimension
80*78*30mm
Net Weight
40g
Color
Black
Shell Material
ABS



Detector
Principle
PIR sensor 120 degree
Detection Range
5 meters
Delay time
2 sec

MCU
STM32, 32bit ARM® core controller
LoRa Module
Semtech® 1276
Controller
Sensitivity
"-137dbm@292bps (RX), 5~20dbm(Tx)




Radio

Frequency

LoRaWAN®

CN470/EU868/US915/AS923Mhz,or

Working Mode

Class A

Activation

ABP/OTAA activation;



Communication Distance

3km in view sight;





Power

Batter Life

If you upload data 50 times a day, the
battery life is more than 1 years

Internal Battery

ER26500 Lithium Battery

8000mAh @ 3.6V,

 External Power supply

6-13.8VDC





Current

<120mA@3.6V(uploading),

<40uA@3.6V(sleep),





Environment

Operating Temperature

-20 ~ +60℃

Storage Temperature

-40 ~ +85℃

Protection Level

IP65



LoRaWAN frequency and Countries/Regions

Frequency

Status

Countries/Regions



EU868



OK



Europe and other



























AU915, AS923



























OK

Australia

New Zealand

Brunei

Cambodia

Hongkong

Indonesia

Japan

Laos

Singapore

Taiwan

Thailand

Vietnam

CN470

OK

China

US915

OK

USA

KR920

OK

Korea





Product Brief:          DC500_PB.pdf

Operation manual:      DC500 User manual.pdf

Configure manual:      DC500 config manual.pdf

Protocol manual:      DC500 Protocol manual.pdf

Dingtek Configure tools:      Dingtek config tools.zip

UART assist program: UARTASSIST.zip

DC500- Dingtek PIR type LoRaWan People counter
